ORIGINAL RESEARCH Diagnostic Accuracy of SuperSonic Shear Imaging for Staging of Liver Fibrosis A Meta-analysis Jin-Chun Feng,MD,Jun Li,MD,Xiang-Wei Wu,MD,PhD,Xin-Yu Peng,MD,PhD Objectives-The purpose of this study was to assess the performance of SuperSonic shear imaging(SuperSonic Imagine SA,Aix-en-Provence,France)for diagnosis ofliver fibrosis. Methods-Literature databases were searched to identify relevant studies from incep- tion to February 28,2015.Sensitivity,specificity,and other information wereextracted from the studies.Pooled data were calculated by a bivariate mixed-effects binary regres- sion model.Subgroup and sensitivity analyses were performed.Publication bias was tested by funnel plots. Results-Twelve studies were included in this meta-analysis and reported on 1635 patients.The pooled sensitivity and specificity were0.78(95%confidence interval [CI], 0.69-0.85)and 0.95(95%CI,0.75-0.99),respectively,for fibrosis stages F21,0.84 (95%CL,0.81-0.86)and0.81(9s%CL,0.74-0.87)forF≥2,0.89(95%CL,0.85-0.93) and0.84(95%CL,0.77-0.89)forF≥3，and0.88(95%CL,0.82-0.91)and0.86(95% CI,0.81-0.90)for F=4.The areas under the summary receiver operating characteristic curves were0.87(95%CL,0.84-0.90)forF≥1,0.85(95%CL,0.81-0.88)forF≥2,0.93 (95%CI,0.91-0.95)for F23,and 0.93(95%CI,0.90-0.95)for F=4.No significant publication bias was found. Conclusions-SuperSonic shear imaging could be used for staging of liver fibrosis. Especially,it has high diagnostic accuracy for severe fibrosis and cirrhosis. Received March 13,2015,from the Shihezi University School of Medicine,Shihezi,China Key Words-gastrointestinal ultrasound;liver fibrosis staging;meta-analysis;shear (I.-C.F.);and Departments of Ultrasound (I.L.) wave elastography and Hepatobiliary Surgery(X-W.W,XY.P.) First Affiliated Hospital of the School Medicine, Shihezi University,Shihezi,China.Revision requested May 8,2015.Revised manuscript accepted for publication June 3 2015. epatic fibrosis is the process ofconnective tissue deposition in Drs Feng and Li contributed equally to this healing caused by chronic liver damage induced by factors work. such as viral infections,excessive alcohol use,autoimmune Address correspondence to Xin-Yu Peng, disease,drug-induced liver damage,and nonalcoholic fatty MD,PhD,Department of Hepatobiliary Surgery, liver disease,which usually leads to cirrhosis and portal hyperten- First Affiliated Hospital of the School Medicine sion.2The degree ofliver fibrosis has a positive correlation with the Shihezi University,North Second Road,832002 risk of hepatocellular carcinoma,and it is closely related to the prog- Shihezi,Xinjiang China. nosis,3-5 but clinical symptoms are unapparent in the early stage of E-mail pengxinyu0106@sina.com liver fibrosis;thus,an accurate approach for evaluation of hepatic Abbreviations fibrosis is important for treatment strategies and monitoring ofther- AUROC,area under the receiver operating apeutic efficacy for patients with chronic hepatic disease. characteristic curve;CI,confidence interval; So far,liver biopsy is still considered the reference standard for OR,odds ratio;ROC,receiver operating hepatic fibrosis staging,but it is an invasive approach,and it brings characteristic a risk of complications.In addition,many factors could influence doi:10.7863/ultra,15.03032 the accuracy ofliver biopsy,such as intraobserver and interobserver @2016 by the American Institute of Ultrasound in Medicine J Ultrasound Med 2016;35:329-339 0278-4297 www.aium.org

Diagnostic Accuracy of SuperSonic Shear Imaging for Staging of Liver Fibrosis A Meta-analysis epatic fibrosis is the process of connective tissue deposition in healing caused by chronic liver damage induced by factors such as viral infections, excessive alcohol use, autoimmune disease, drug-induced liver damage, and nonalcoholic fatty liver disease, which usually leads to cirrhosis and portal hyperten￾sion.1,2The degree of liver fibrosis has a positive correlation with the risk of hepatocellular carcinoma, and it is closely related to the prog￾nosis,3–5 but clinical symptoms are unapparent in the early stage of liver fibrosis; thus, an accurate approach for evaluation of hepatic fibrosis is important for treatment strategies and monitoring of ther￾apeutic efficacy for patients with chronic hepatic disease. So far, liver biopsy is still considered the reference standard for hepatic fibrosis staging,6 but it is an invasive approach, and it brings a risk of complications.6 In addition, many factors could influence the accuracy of liver biopsy, such as intraobserver and interobserver Jin-Chun Feng, MD, Jun Li, MD, Xiang-Wei Wu, MD, PhD, Xin-Yu Peng, MD, PhD Received March 13, 2015, from the Shihezi University School of Medicine, Shihezi, China (J.-C.F.); and Departments of Ultrasound (J.L.) and Hepatobiliary Surgery (X.-W.W., X.-Y.P.), First Affiliated Hospital of the School Medicine, Shihezi University, Shihezi, China. Revision requested May 8, 2015. Revised manuscript accepted for publication June 3, 2015. Drs Feng and Li contributed equally to this work. Address correspondence to Xin-Yu Peng, MD, PhD, Department of Hepatobiliary Surgery, First Affiliated Hospital of the School Medicine, Shihezi University, North Second Road, 832002 Shihezi, Xinjiang, China. E-mail: pengxinyu0106@sina.com Abbreviations AUROC, area under the receiver operating characteristic curve; CI, confidence interval; OR, odds ratio; ROC, receiver operating characteristic H ©2016 by the American Institute of Ultrasound in Medicine | J Ultrasound Med 2016; 35:329–339 | 0278-4297 | www.aium.org ORIGINAL RESEARCH Objectives—The purpose of this study was to assess the performance of SuperSonic shear imaging (SuperSonic Imagine SA, Aix-en-Provence, France) for diagnosis of liver fibrosis. Methods—Literature databases were searched to identify relevant studies from incep￾tion to February 28, 2015. Sensitivity, specificity, and other information were extracted from the studies. Pooled data were calculated by a bivariate mixed-effects binary regres￾sion model. Subgroup and sensitivity analyses were performed. Publication bias was tested by funnel plots. Results—Twelve studies were included in this meta-analysis and reported on 1635 patients. The pooled sensitivity and specificity were 0.78 (95% confidence interval [CI], 0.69–0.85) and 0.95 (95% CI, 0.75–0.99), respectively, for fibrosis stages F≥1, 0.84 (95% CI, 0.81–0.86) and 0.81 (95% CI, 0.74–0.87) for F≥2, 0.89 (95% CI, 0.85–0.93) and 0.84 (95% CI, 0.77–0.89) for F≥3, and 0.88 (95% CI, 0.82–0.91) and 0.86 (95% CI, 0.81–0.90) for F=4. The areas under the summary receiver operating characteristic curves were 0.87 (95% CI, 0.84–0.90) for F≥1, 0.85 (95% CI, 0.81–0.88) for F≥2, 0.93 (95% CI, 0.91–0.95) for F≥3, and 0.93 (95% CI, 0.90–0.95) for F=4. No significant publication bias was found. Conclusions—SuperSonic shear imaging could be used for staging of liver fibrosis. Especially, it has high diagnostic accuracy for severe fibrosis and cirrhosis. Key Words—gastrointestinal ultrasound; liver fibrosis staging; meta-analysis; shear wave elastography doi:10.7863/ultra.15.03032 3502jum279-400 copy_Layout 1 1/20/16 12:46 PM Page 329

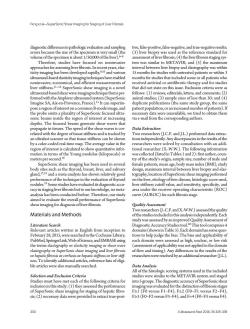

Feng et al-SuperSonic Shear Imaging for Staging of Liver Fibrosis diagnostic differences in pathologic evaluation and sampling tive,false-positive,false-negative,and true-negative results; errors because the size of the specimen is very small (the (3)liver biopsy was used as the reference standard for volume of the specimen is about 1/50,000 ofthe liver).6-8 assessment ofliver fibrosis;(4)the liver fibrosis staging sys- Therefore,studies have focused on noninvasive tem was similar to METAVIR;and (5)the maximum approaches for assessing liver fibrosis.In recent years,elas- interval between liver biopsy and elastography was within ticity imaging has been developed rapidly,10 and various 15 months for studies with untreated patients or within 3 ultrasound-based elasticity imaging techniques have enabled months for studies that included some or all patients who noninvasive,economical,and efficient measurements of received antiviral or antifibrotic therapy and for studies liver stiffness.11-14 SuperSonic shear imaging is a novel that did not state on this issue.Exclusion criteria were as ultrasound-based shear wave imaging technique that is per- follows:(1)reviews,editorials,letters,and comments;(2) formed with the Aixplorer ultrasound system(SuperSonic animal studies;(3)sample sizes of less than 30;and (4) Imagine SA,Aix-en-Provence,France).15 It can superim- duplicate publications(the same study group,the same pose a region ofinterest on a common B-mode image,and patient population,or an increased number ofpatients).If the probe emits a plurality of SuperSonic focused ultra- necessary data were unavailable,we tried to obtain them sonic beams inside the region of interest at increasing via e-mail from the corresponding authors. depths.The focused beams generate shear waves that propagate in tissues.The speed of the shear waves is cor- Data Extraction related with the degree oftissue stiffness and is tracked by Two researchers (J.C.F.and J.L.)performed data extrac- an ultrafast scanner so that tissue stiffness can be shown tions independently.Any discrepancies in the results ofthe by a color-coded real-time map.The average value in the researchers were solved by consultation with an addi- region of interest is calculated to show quantitative infor- tional researcher(X.-W.W.).The following information mation in terms of the Young modulus(kilopascals)or was collected (listed in Tables 1 and2):first author,coun- meters per second.16 try of the study's origin,sample size,number of male and SuperSonic shear imaging has been used in several female patients,mean age,body mass index(BMI),study body sites such as the thyroid,breast,liver,and salivary design,maximum interval between liver biopsy and elas- gland,and a meta-analysis has shown relatively good tography,location of SuperSonic shear imaging performed performance of the technique in the evaluation of thyroid on the liver,etiology of liver disease,histologic score used, nodules.Some studies have evaluated its diagnostic accu- liver stiffness cutoff value,and sensitivity,specificity,and racy in staging liver fibrosis but to our knowledge,no meta- area under the receiver operating characteristic(ROC) analysis has been conducted before.Therefore,our study curve (AUROC)for each fibrosis stage. aimed to evaluate the overall performance of SuperSonic shear imaging for diagnosis of liver fibrosis. Quality Assessment Two researchers(I.-C.F.and X.-W.W.)assessed the quality Materials and Methods of the studies included in this analysis independently.Each study was assessed by an improved Quality Assessment of Literature Search Diagnostic Accuracy Studies tool.20 This tool comprises4 Relevant articles written in English from inception to domains(shownin Table 3).Each domain has some ques- February 28,2015,were searched in the Cochrane Library, tions to help judge the bias.The bias and applicability of PubMed,SpringerLink,Web ofScience,and EMBASE using each domain were assessed as high,unclear,or low risk the terms elastography or elasticity imaging or shear wave (assessment of applicability was not applied in the domain elastography or SuperSonic shear imaging and liver fibrosis of flow and timing).Any differences in the results of the or hepatic fibrosis or cirrhosis or hepatic stiffness or liver stiff- researchers were resolved by an additional researcher (J.L.). ness.To identify additional articles,reference lists of eligi- ble articles were also manually searched. Data Analysis All of the histologic scoring systems used in the included Selection and Exclusion Criteria studies were similar to the METAVIR system and staged Studies must have met each of the following criteria for into 5 groups.The diagnostic accuracy ofSuperSonic shear inclusion in this study:(1)they assessed the performance imaging was evaluated for the distinction offibrosis stages of SuperSonic shear imaging for staging of hepatic fibro- F21(F0 versus F1-F4),F22 (FO-F1 versus F2-F4), sis;(2)necessary data were provided to extract true-posi- F23(F0-F2 versus F3-F4),and F=4(F0-F3 versus F4). 330 J Ultrasound Med 2016:35:329-339

diagnostic differences in pathologic evaluation and sampling errors because the size of the specimen is very small (the volume of the specimen is about 1/50,000 of the liver).6–8 Therefore, studies have focused on noninvasive approaches for assessing liver fibrosis. In recent years, elas￾ticity imaging has been developed rapidly,9,10 and various ultrasound-based elasticity imaging techniques have enabled noninvasive, economical, and efficient measurements of liver stiffness.11–14 SuperSonic shear imaging is a novel ultrasound-based shear wave imaging technique that is per￾formed with the Aixplorer ultrasound system (SuperSonic Imagine SA, Aix-en-Provence, France).15 It can superim￾pose a region of interest on a common B-mode image, and the probe emits a plurality of SuperSonic focused ultra￾sonic beams inside the region of interest at increasing depths. The focused beams generate shear waves that propagate in tissues. The speed of the shear waves is cor￾related with the degree of tissue stiffness and is tracked by an ultrafast scanner so that tissue stiffness can be shown by a color-coded real-time map. The average value in the region of interest is calculated to show quantitative infor￾mation in terms of the Young modulus (kilopascals) or meters per second.16 SuperSonic shear imaging has been used in several body sites such as the thyroid, breast, liver, and salivary gland,17,18 and a meta-analysis has shown relatively good performance of the technique in the evaluation of thyroid nodules.19 Some studies have evaluated its diagnostic accu￾racy in staging liver fibrosis but to our knowledge, no meta￾analysis has been conducted before. Therefore, our study aimed to evaluate the overall performance of SuperSonic shear imaging for diagnosis of liver fibrosis. Materials and Methods Literature Search Relevant articles written in English from inception to February 28, 2015, were searched in the Cochrane Library, PubMed, SpringerLink, Web of Science, and EMBASE using the terms elastography or elasticity imaging or shear wave elastography or SuperSonic shear imaging and liver fibrosis or hepatic fibrosis orcirrhosis or hepatic stiffness or liver stiff￾ness. To identify additional articles, reference lists of eligi￾ble articles were also manually searched. Selection and Exclusion Criteria Studies must have met each of the following criteria for inclusion in this study: (1) they assessed the performance of SuperSonic shear imaging for staging of hepatic fibro￾sis; (2) necessary data were provided to extract true-posi￾tive, false-positive, false-negative, and true-negative results; (3) liver biopsy was used as the reference standard for assessment of liver fibrosis; (4) the liver fibrosis staging sys￾tem was similar to METAVIR; and (5) the maximum interval between liver biopsy and elastography was within 15 months for studies with untreated patients or within 3 months for studies that included some or all patients who received antiviral or antifibrotic therapy and for studies that did not state on this issue. Exclusion criteria were as follows: (1) reviews, editorials, letters, and comments; (2) animal studies; (3) sample sizes of less than 30; and (4) duplicate publications (the same study group, the same patient population, or an increased number of patients). If necessary data were unavailable, we tried to obtain them via e-mail from the corresponding authors. Data Extraction Two researchers (J.C.F. and J.L.) performed data extrac￾tions independently. Any discrepancies in the results of the researchers were solved by consultation with an addi￾tional researcher (X.-W.W.). The following information was collected (listed in Tables 1 and 2): first author, coun￾try of the study’s origin, sample size, number of male and female patients, mean age, body mass index (BMI), study design, maximum interval between liver biopsy and elas￾tography, location of SuperSonic shear imaging performed on the liver, etiology of liver disease, histologic score used, liver stiffness cutoff value, and sensitivity, specificity, and area under the receiver operating characteristic (ROC) curve (AUROC) for each fibrosis stage. Quality Assessment Two researchers (J.-C.F. and X.-W.W.) assessed the quality of the studies included in this analysis independently. Each study was assessed by an improved Quality Assessment of Diagnostic Accuracy Studies tool.20This tool comprises 4 domains (shown in Table 3). Each domain has some ques￾tions to help judge the bias. The bias and applicability of each domain were assessed as high, unclear, or low risk (assessment of applicability was not applied in the domain of flow and timing). Any differences in the results of the researchers were resolved by an additional researcher (J.L.). Data Analysis All of the histologic scoring systems used in the included studies were similar to the METAVIR system and staged into 5 groups. The diagnostic accuracy of SuperSonic shear imaging was evaluated for the distinction of fibrosis stages F≥1 (F0 versus F1–F4), F≥2 (F0–F1 versus F2–F4), F≥3 (F0–F2 versus F3–F4), and F=4 (F0–F3 versus F4). Feng et al—SuperSonic Shear Imaging for Staging of Liver Fibrosis 330 J Ultrasound Med 2016; 35:329–339 3502jum279-400 copy_Layout 1 1/20/16 12:46 PM Page 330

Feng et al-SuperSonic Shear Imaging for Staging of Liver Fibrosis dIAV3W dIAVL3W biMpn pue sneg 8IAVW 3 乏 2.251 aoejns ulxs 227 22741 220m wnwxeW p awes p May p awes pPZ 品 88 尉 网 的对 丙月 Apms 是 是 是 是 器 K'a6v 品器 零 等 罕 065 品 /W 697192 11146 男 6100550 6810060 闲品 (81276 692627 6100500 292861 色 euly euyo JUltrasound Med 2016:35:329-339 331

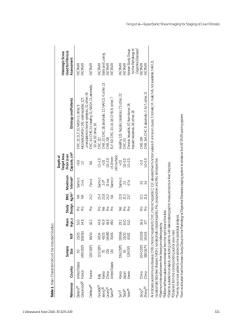

J Ultrasound Med 2016; 35:329–339 331 Feng et al—SuperSonic Shear Imaging for Staging of Liver Fibrosis Table 1. Main Characteristics of the Included Studies Depth of Target Area Histologic Score Sample Mean Study BMI, Maximum From Liver Used for Fibrosis Reference Country Size M/F Age, y Design kg/m2 Intervala Capsule, cmb Etiology and Patients Assessment Beland27 United States 50 25/25 52.0 Pro NA Same d 2.0 CHB, 23; CHC, 18; alcoholic, 12; NAFLD, 4; other, 13 Batts and Ludwig Leung31 China 226 146/80 48.8 Pro 24.2 12 mo 1.0–3.0 CHB, 226 METAVIR Samir32 United States 136 70/66 49.0 Pro NA Same d 2.0 Healthy, 123; hepatic steatosis, 73; other, 22 METAVIR Tada34 Japan 55 23/32 61.0 Pro 21.3 2 d 1.0–2.0 CHC, 55 METAVIR Yoon35 Korea 129 (75c) 87/42 51.0 Pro 23.7 67 d 1.5–2.0 Chronic hepatitis, 67; liver donor, 18; Korean Study Group hepatic steatosis, 16; other, 28 for the Pathology of Digestive Diseasesf Zeng37 China 104 (101c) 251/59 36.6 Pro 22.1 3 d >1.0 CHB, 104 METAVIR Zheng36 China 198 (167c) 145/53 37.7 Pro 21.6 3 d 1.0–2.0 CHB, 164; CHC, 9; alcoholic, 7; AI, 7; other, 11 METAVIR AI indicates autoimmune disease; CHB, chronic hepatitis B; CHC, chronic hepatitis C; ELF, elevated liver function values of unknown cause; F, female; M, male; NA, not available; NAFLD, nonalcoholic fatty liver disease; NASH, nonalcoholic steatohepatitis; Pro, prospective; and Ret, retrospective. aMaximum interval between liver biopsy and elastography. bAll liver stiffness values were obtained from the right lobe of the liver. cPatients suitable for analysis, excluding patients with failed elastographic measurements or liver biopsies. dObtained from the corresponding author via e-mail. eTwenty-two more patients were added to the statistical analysis. fYoon et al stated that the Korean Study Group for the Pathology of Digestive Diseases staging system is similar to the METAVIR scoring system. 3502jum279-400 copy_Layout 1 1/20/16 12:46 PM Page 331

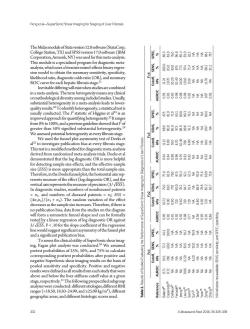

Feng et al-SuperSonic Shear Imaging for Staging of Liver Fibrosis The Midas module of Stata version 12.0 software(StataCorp, College Station,TX)and SPSS version 17.0 software(IBM Corporation,Armonk,NY)was used for this meta-analysis. 常品是架站品耐乏乏乏留时 This module is a specialized program for diagnostic meta- analysis,which uses a bivariate mixed-effects binary regres- 昌品品品卡乏乏乏能 sion model to obtain the summary sensitivity,specificity, likelihood ratio,diagnostic odds ratio (OR),and summary ROC curve for each hepatic fibrosis stage.2 图S目昌目目8乏乏乏娟至 Inevitable differing will exist when studies are combined in a meta-analysis.The term heterogeneity means any clinical or methodological diversity amongincluded studies.Usually, 思器思袋乏乏乏g substantial heterogeneity in a meta-analysis leads to lower- quality results.Toidentifyheterogeneity,a statisticaltestis usually conducted.The I2 statistic of Higgins et al23 is an 89 品品朵恩品常受芝 improved approach for quantifying heterogeneity.23 It ranges from 0%to 100%,and a previous guideline showed that Iof greater than 50%signified substantial heterogeneity.24 ” 品景品8品醫世乏乏芝品乏 We assessed potential heterogeneity at every fibrosis stage. We used the funnel plot asymmetry test of Deeks et al2s to investigate publication bias at every fibrosis stage. 目厨品品昌是品乏乏乏易乏 This test is a modified method for diagnostic meta-analysis derived from randomized meta-analysis trials.Deeks et al demonstrated that the log diagnostic OR is more helpful 县8每8乏乏乏8乏 for detecting sample size effects,and the effective sample size(ESS)is more appropriate than the total sample size. Therefore,in the Deeks funnel plot,the horizontal axis rep- 尽 品是品88份乏8器周 resents measure of the effect(log diagnostic OR),and the vertical axis represents the measure ofprecision(3/ESS). In diagnostic studies,numbers of nondiseased patients 员品尽景使苏京乏贸哭始的 =n,and numbers of diseased patients =n2;ESS (4nn2)/(n+n2).The random variation of the effect decreases as the sample size increases.Therefore,if there is 品是品果图乏8月乏 no publication bias,data from the studies on the diagram will form a symmetric funnel shape and can be formally tested by a linear regression of log diagnostic OR against 西88器6乏超 3/ESS.P<.10 for the slope coefficient of the regression line would suggest significant asymmetry of the funnel plot 9 and a significant publication bias. B昌乏乏乏乏8乏乏乏乏 To assess the clinical utility of SuperSonic shear imag- ing,Fagan plot analysis was conducted.26 We assumed 'SN3S N⑧乏受乏品乏品受乏受受 pretest probabilities of 25%,50%,and 75%to calculate corresponding posttest probabilities after positive and negative SuperSonic shear imaging results on the basis of 园乏乏乏日乏品乏乏乏乏 pooled sensitivity and specificity.Positive and negative results were defined as all results from each study that were S8乏乏乏思乏乏乏乏乏乏 above and below the liver stiffness cutoff value at a given stage,respectively.The following prespecified subgroup analyses were conducted:different etiologies,different BMI ranges (<18.50,18.50-24.99,and 225.00 kg/m2),different geographic areas,and different histologic scores used. 332 J Ultrasound Med 2016:35:329-339

The Midas module of Stata version 12.0 software (StataCorp, College Station, TX) and SPSS version 17.0 software (IBM Corporation, Armonk, NY) was used for this meta-analysis. This module is a specialized program for diagnostic meta￾analysis, which uses a bivariate mixed-effects binary regres￾sion model to obtain the summary sensitivity, specificity, likelihood ratio, diagnostic odds ratio (OR), and summary ROC curve for each hepatic fibrosis stage.21 Inevitable differing will exist when studies are combined in a meta-analysis. The term heterogeneitymeans any clinical or methodological diversity among included studies. Usually, substantial heterogeneity in a meta-analysis leads to lower￾quality results.22To identify heterogeneity, a statistical test is usually conducted. The I 2 statistic of Higgins et al23 is an improved approach for quantifying heterogeneity.23 It ranges from 0% to 100%, and a previous guideline showed that I 2of greater than 50% signified substantial heterogeneity.24 We assessed potential heterogeneity at every fibrosis stage. We used the funnel plot asymmetry test of Deeks et al25 to investigate publication bias at every fibrosis stage. This test is a modified method for diagnostic meta-analysis derived from randomized meta-analysis trials. Deeks et al demonstrated that the log diagnostic OR is more helpful for detecting sample size effects, and the effective sample size (ESS) is more appropriate than the total sample size. Therefore, in the Deeks funnel plot, the horizontal axis rep￾resents measure of the effect (log diagnostic OR), and the vertical axis represents the measure of precision ( ). In diagnostic studies, numbers of nondiseased patients = n1, and numbers of diseased patients = n2; ESS = (4n1n2)/(n1 + n2). The random variation of the effect decreases as the sample size increases. Therefore, if there is no publication bias, data from the studies on the diagram will form a symmetric funnel shape and can be formally tested by a linear regression of log diagnostic OR against . P < .10 for the slope coefficient of the regression line would suggest significant asymmetry of the funnel plot and a significant publication bias. To assess the clinical utility of SuperSonic shear imag￾ing, Fagan plot analysis was conducted.26 We assumed pretest probabilities of 25%, 50%, and 75% to calculate corresponding posttest probabilities after positive and negative SuperSonic shear imaging results on the basis of pooled sensitivity and specificity. Positive and negative results were defined as all results from each study that were above and below the liver stiffness cutoff value at a given stage, respectively.11The following prespecified subgroup analyses were conducted: different etiologies, different BMI ranges (<18.50, 18.50–24.99, and ≥25.00 kg/m2 ), different geographic areas, and different histologic scores used. 3/√ESS 3/√ESS Feng et al—SuperSonic Shear Imaging for Staging of Liver Fibrosis 332 J Ultrasound Med 2016; 35:329–339 Table 2. Results of Studies Evaluating the Performance of SuperSonic Shear Imaging for Diagnosis of Liver Fibrosis F≥1 F≥2 F≥3 F=4 Cutoff, SENS, SPEC, Cutoff, SENS, SPEC, Cutoff, SENS, SPEC, Cutoff, SENS, SPEC, Reference AUROC kPa % % AUROC kPa % % AUROC kPa % % AUROC kPa % % Beland27 0.71 9.51 72.2 64.3 0.85 10.72 75.0 75.0 0.94 11.12 88.9 87.5 0.93 12.24 100.0 80.5 Cassinotto28 0.72 7.80 68.0 100.0 0.82 8.00 83.0 82.0 0.84 8.90 90.0 81.0 0.83 10.70 85.0 83.0 Deffieux29 NA NA NA NA 0.81 8.90 77.0 79.0 0.80 9.10 85.0 72.0 0.85 10.20 83.0 76.0 Ferraioli14 NA NA NA NA 0.92 7.10 90.0 87.5 0.98 8.70 97.3 85.1 0.98 10.40 87.5 96.8 Jeong30 NA NA NA NA 0.92 8.60 78.2 93.3 0.91 10.46 88.6 80.0 0.88 14.00 77.3 85.4 Leung31 0.86 6.50 83.5 91.2 0.88 7.10 84.7 92.1 0.93 7.90 89.8 90.3 0.98 10.10 97.4 93.0 Samir32 NA NA NA NA 0.77 7.29 91.4 52.5 0.82 8.90 76.5 76.5 0.82 9.59 71.4 82.2 Suh33 NA 6.20 91.0 95.9 NA NA NA NA NA NA NA NA NA NA NA NA Tada34 NA NA NA NA 0.94 8.80 88.9 91.9 NA NA NA NA NA NA NA NA Yoon35 NA NA NA NA 0.85 6.65 78.8 75.6 NA NA NA NA NA NA NA NA Zeng37 NA NA NA NA 0.91 7.20 85.2 80.9 0.93 9.10 89.7 80.6 0.97 11.70 88.2 88.1 Zheng36 NA NA NA NA 0.86 NA 85.7 73.9 NA NA NA NA 0.93 NA 91.2 79.7 NA indicates not available; SENS, sensitivity; and SPEC, specificity. 3502jum279-400 copy_Layout 1 1/20/16 12:46 PM Page 332

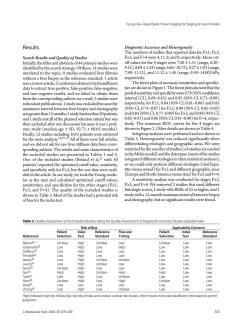

Feng et al-SuperSonic Shear Imaging for Staging of Liver Fibrosis Results Diagnostic Accuracy and Heterogeneity The numbers of studies that reported data for F21,F22, Search Results and Quality of Studies F23,and F=4 were 4,11,8,and 9,respectively.Mean cut- Initially,the titles and abstracts of 44 primary studies were off values for the 4 stages were 7.50+1.51 (range,6.20- identified by the search strategy.Ofthese,14 studies were 9.51),8.04±1.24(range,6.65-10.72),9.27±1.03(range unrelated to the topic;9 studies evaluated liver fibrosis 7.90-11.12),and11.12±1.45(range,9.59-14.00)kPa, without a liver biopsy as the reference standard;1 article respectively. was a review article;2 conference abstracts had insufficient The forest plots of summary sensitivities and specifici- data to extract true-positive,false-positive,false-negative, ties are shown in Figure 1.The forest plots showed that the and true-negative results,and we failed to obtain them pooled sensitivity and specificity were 0.78(95%confidence from the corresponding authors via e-mail;3 studies were interval[CI],0.69-0.85)and0.95(95%CL,0.75-0.99) redundant publications;1 study was excluded because the respectively,for F21,0.84(95%CI,0.81-0.86)and 0.81 maximum interval between liver biopsy and elastography 95%CL,0.74-0.87)forF≥2,0.89(95%CL.0.85-0.93) was greater than 15 months;1 study has less than 30 patients; and0.84(95%CL0.77-0.89)forF≥3，and0.88(95%CL, and 1 study met all of the planned selection criteria but was 0.82-0.91)and0.86(95%CL,0.81-0.90)forF=4,respec- then excluded after our discussion because it was a pedi- tively.The summary ROC curves for the 4 stages are atric study (median age SD,92.71 66.65 months). shown in Figure 2.Other details are shown in Table 4. Finally,12 studies including 1635 patients were retrieved Subgroup analyses were performed and are shown in for the meta-analysis.427-37 All of them were full articles, Table 5.Heterogeneity was reduced significantly when and we did not ask for raw liver stiffness data from corre- differentiating etiologies and geographic areas.We were sponding authors.The results and main characteristics of restricted by the number ofstudies(24 studies are needed the included studies are presented in Tables 1 and 2. in the Midas model)and the data types(most ofthe studies One of the included studies(Beland et al,27 with 50 integrated different etiologies in their statistical analyses), patients)reported the optimized cutoff value,sensitivity, so we could only perform different etiologies(viral hepa- and specificity only for F22,but the raw data were avail- titis versus mixed)for F22 and different geographic areas able in the article.In our study,we took the Young modu- (Europe and North America versus Asia)for F22 and F=4. lus as the unit and calculated optimized cutoff values, A sensitivity analysis was conducted for stages F22, sensitivities,and specificities for the other stages (F21, F23,and F=4.We removed 2 studies that used different F23,and F=4).The quality of the included studies is histologic scores,1 study with BMIs of25 or higher,and 1 shown in Table 3.Most of the studies had a potential risk study with a 12-month maximum interval between biopsy of bias for the index test. and elastography,but no significant results were found. Table 3.Quality Assessment of the Included Studies Using the Quality Assessment of Diagnostic Accuracy Studies Questionnaire Risk of Bias Applicability Concerns Patient Index Reference Flow and Patient Index Reference Reference Selection Test Standard Timing Selection Test Standard Beland27 Unclear High Unclear Low Unclear Low LOw Cassinotto28 Low High LOW High LOw LOw Low Deffieux29 Low High Low Low Low Low Low Ferraioli14 Low High Low Low Low Low Low Jeong30 Low High Unclear Unclear LOW Low Low Leung31 LOw High Unclear LOW LOW Low Low Samir32 Unclear High Low LOW Low Low Low Suh33 High High Unclear High High Low Low Tada34 LOw High LOW Unclear LOW Low Low Yoon35 Unclear High Low High Unclear Low Low Zeng37 Low LOw Low LOW Low Low Low Zheng36 LOw High Low Unclear LOW Low Low High indicates high risk of bias;low,low risk of bias;and unclear,unclear risk of bias,which means there was insufficient information to permit judgment. JUltrasound Med 2016:35:329-339 333

Results Search Results and Quality of Studies Initially, the titles and abstracts of 44 primary studies were identified by the search strategy. Of these, 14 studies were unrelated to the topic; 9 studies evaluated liver fibrosis without a liver biopsy as the reference standard; 1 article was a review article; 2 conference abstracts had insufficient data to extract true-positive, false-positive, false-negative, and true-negative results, and we failed to obtain them from the corresponding authors via e-mail; 3 studies were redundant publications; 1 study was excluded because the maximum interval between liver biopsy and elastography was greater than 15 months; 1 study has less than 30 patients; and 1 study met all of the planned selection criteria but was then excluded after our discussion because it was a pedi￾atric study (median age ± SD, 92.71 ± 66.65 months). Finally, 12 studies including 1635 patients were retrieved for the meta-analysis.14,27–37 All of them were full articles, and we did not ask for raw liver stiffness data from corre￾sponding authors. The results and main characteristics of the included studies are presented in Tables 1 and 2. One of the included studies (Beland et al,27 with 50 patients) reported the optimized cutoff value, sensitivity, and specificity only for F≥2, but the raw data were avail￾able in the article. In our study, we took the Young modu￾lus as the unit and calculated optimized cutoff values, sensitivities, and specificities for the other stages (F≥1, F≥3, and F=4). The quality of the included studies is shown in Table 3. Most of the studies had a potential risk of bias for the index test. Diagnostic Accuracy and Heterogeneity The numbers of studies that reported data for F≥1, F≥2, F≥3, and F=4 were 4, 11, 8, and 9, respectively. Mean cut￾off values for the 4 stages were 7.50 ± 1.51 (range, 6.20– 9.51), 8.04 ± 1.24 (range, 6.65–10.72), 9.27 ± 1.03 (range, 7.90–11.12), and 11.12 ± 1.45 (range, 9.59–14.00) kPa, respectively. The forest plots of summary sensitivities and specifici￾ties are shown in Figure 1. The forest plots showed that the pooled sensitivity and specificity were 0.78 (95% confidence interval [CI], 0.69–0.85) and 0.95 (95% CI, 0.75–0.99), respectively, for F≥1, 0.84 (95% CI, 0.81–0.86) and 0.81 (95% CI, 0.74–0.87) for F≥2, 0.89 (95% CI, 0.85–0.93) and 0.84 (95% CI, 0.77–0.89) for F≥3, and 0.88 (95% CI, 0.82–0.91) and 0.86 (95% CI, 0.81–0.90) for F=4, respec￾tively. The summary ROC curves for the 4 stages are shown in Figure 2. Other details are shown in Table 4. Subgroup analyses were performed and are shown in Table 5. Heterogeneity was reduced significantly when differentiating etiologies and geographic areas. We were restricted by the number of studies (≥4 studies are needed in the Midas model) and the data types (most of the studies integrated different etiologies in their statistical analyses), so we could only perform different etiologies (viral hepa￾titis versus mixed) for F≥2 and different geographic areas (Europe and North America versus Asia) for F≥2 and F=4. A sensitivity analysis was conducted for stages F≥2, F≥3, and F=4. We removed 2 studies that used different histologic scores, 1 study with BMIs of 25 or higher, and 1 study with a 12-month maximum interval between biopsy and elastography, but no significant results were found. J Ultrasound Med 2016; 35:329–339 333 Feng et al—SuperSonic Shear Imaging for Staging of Liver Fibrosis Table 3. Quality Assessment of the Included Studies Using the Quality Assessment of Diagnostic Accuracy Studies Questionnaire Risk of Bias Applicability Concerns Patient Index Reference Flow and Patient Index Reference Reference Selection Test Standard Timing Selection Test Standard Beland27 Unclear High Unclear Low Unclear Low Low Cassinotto28 Low High Low High Low Low Low Deffieux29 Low High Low Low Low Low Low Ferraioli14 Low High Low Low Low Low Low Jeong30 Low High Unclear Unclear Low Low Low Leung31 Low High Unclear Low Low Low Low Samir32 Unclear High Low Low Low Low Low Suh33 High High Unclear High High Low Low Tada34 Low High Low Unclear Low Low Low Yoon35 Unclear High Low High Unclear Low Low Zeng37 Low Low Low Low Low Low Low Zheng36 Low High Low Unclear Low Low Low High indicates high risk of bias; low, low risk of bias; and unclear, unclear risk of bias, which means there was insufficient information to permit judgment. 3502jum279-400 copy_Layout 1 1/20/16 12:46 PM Page 333

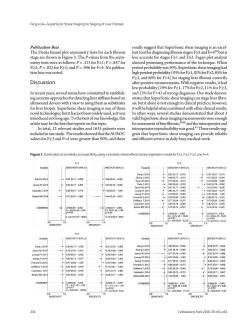

Feng et al-SuperSonic Shear Imaging for Staging of Liver Fibrosis Publication Bias results suggest that SuperSonic shear imaging is an excel- The Deeks funnel plot asymmetry tests for each fibrosis lent tool for diagnosing fibrosis stages F23 and F=438 but is stage are shown in Figure 3.The P values from the asym- less accurate for stages F21 and F22.Fagan plot analysis metry tests were as follows:P=.313 for F21;P=.847 for showed promising performance of the technique.When F≥2；P=.825forF≥3；andP=.946forF=4.No publica- pretest probability was 50%,SuperSonic shear imaging had tion bias was noted. high posttest probability(93%for F21,82%for F22,85%for F23,and 86%for F=4)for staging liver fibrosis correctly Discussion after positive measurements.With negative results,it had low probability(19%forF≥1,17%forF≥2,11%forF≥3， In recent years,several teams have committed to establish- and 13%for F=4)of wrong diagnoses.Our study demon- ing accurate approaches for detecting liver stiffness based on strates that SuperSonic shear imaging can stage liver fibro- ultrasound devices with a view to using them as substitutes sis,but it alone is not enough in clinical practice;however, for liver biopsy.SuperSonic shear imaging is one of these it will be helpful when combined with other clinical results. novel technologies,but it has not been widely used,as it was In other ways,several studies demonstrated that about 3 introduced not long ago.To the best ofour knowledge,this valid SuperSonic shear imaging measurements were enough article may be the first that reports on this topic. for assessment ofliver fibrosis,3940 and the interoperator and In total,12 relevant studies and 1635 patients were intraoperator reproducibility was good.These results sug- included in our study.The results showed that the AUROC gests that SuperSonic shear imaging can provide reliable values for F23 and F=4 were greater than 90%,and these and efficient service in daily busy medical work. Figure 1.Forest plots of sensitivity and specificity using a bivariate mixed-effects binary regression model for F21,F22.F23,and F=4. F≥1 F22 Studyld) |SENSITIVITY (95%C) ISPECIFIOTY (95%O Studyld SENSITMVITY (95%CI) SPECIFICITY (95%CI) Zeng J 2014 0.850,73-093 0810.67=0.911 Suh CH 2014 0.910.71-0.9g 0.960.92-0.98 Zheng J2015 0860.77-0.92 0.740.62-0.84 Yoon JH 2014 0.79[062=0.911 0.76[060=089 Leung VY 2013 0.840.77-089 0.92[0.79-0.981 Tada t 2015 0891065-0.99 0.92【078-0.981 Samir AE 2014 0.910.77-0.98 0,52I042-0.63 Cassinotto C 2014 0.680.61-073 100092-100 Leung VY 2013 085[077-0.90 0.92085-0.971 Jeong JY 2014 0.780.65-0.88 0.930.6g-1.00] Beland MD 2014 0.720.55-0861 0640.35-0.871 Ferraoli G 2012 090[080-0.96 0880.75-0.95 Drffieux T 2014 077064-0.87 0.79「0.66-0朗1 Cassinotto C2014 083[076-0.88 0820.74-089 COMBINED 0.78069-0.85 Beland MD 2014 076[053-0.92 0.760.56-0.901 20,df=3.00 00.00 p-0.00 COMBINED 0.840.81 2=5.157167-9862 2=754762-9线3明 0001 00 0.0 10 ■0.000,00-9220 =83376.13-92.53] 0.0 1.0 0.0 SENSITIVITY SPECIFICITY 1.0 SPECIFICITY F≥3 F=4 Studyld SENSITIVITY 19546 CD SPECIFKCMY 195%6CI Studyld SENSITIVITY (9596 CI SPECIFICITY (95%C) Zeng J2014 0900.73-0.98 0.810.70=0,89 Zeng J2014 0.880.64-0.99 0.8B10.79-0.941 Samir AE 2014 0.760.50-093] 0.760.66-0.84 Zheng J 2015 0.910.76-0.98 0.800.72-0.8 Leung VY 2013 0.9010.81-0.96 0.900.84-0.951 Samir AE 2014 0.71[029-0.96 0.820.74-0.88 Jeong JY 2014 0890.73-0.971 0.800.63-0.921 Leung VY 2013 0.97085-1.00 0.930.89-0.96 0771055-092 Ferraioli G 2012 0.97[0.86-1.00 0.950.88-0.99 Jeong JY 2014 0.8510.72-0.941 Ferraioli G 2012 098068-0.97刀 1+0.970.91-0.99 Deffieux T 2014 0.850.69-0.9 0.7210.61-0.821 Deffieux T 2014 0.830.59-0.96 0.7610.66-0.84 Cassinotto C 2014 0.900.83-0.94 0.810.74-0,86 Cassinotto C2014 0850.75-0.911 0.820.77-0.87刀 Beland MD 2014 0.890.65-0.99 0.8810.71-0.96 Beland MD2014 1.00[066-1.00 0.8010.65-0.911 COMBINED 0.90B5-09 0B4[077=0.99 657,df=7.00 COMBINED p-0.398.df 086081-0.90 Q=27.31,d=7.00 n0.00 =0001000-100.0d 2=74375530-924用 12=19.04000-7757刀 2=722的-918 00 .0 0.0 .0 00 0 0.0 SENSITIVTY SPECIFICITY SENSITIVITY SPECIFICITY 334 JUltrasound Med 2016:35:e51-e61

Feng et al—SuperSonic Shear Imaging for Staging of Liver Fibrosis 334 J Ultrasound Med 2016; 35:e51–e61 Publication Bias The Deeks funnel plot asymmetry tests for each fibrosis stage are shown in Figure 3. The P values from the asym￾metry tests were as follows: P = .313 for F≥1; P = .847 for F≥2; P = .825 for F≥3; and P = .946 for F=4. No publica￾tion bias was noted. Discussion In recent years, several teams have committed to establish￾ing accurate approaches for detecting liver stiffness based on ultrasound devices with a view to using them as substitutes for liver biopsy. SuperSonic shear imaging is one of these novel technologies, but it has not been widely used, as it was introduced not long ago. To the best of our knowledge, this article may be the first that reports on this topic. In total, 12 relevant studies and 1635 patients were included in our study. The results showed that the AUROC values for F≥3 and F=4 were greater than 90%, and these results suggest that SuperSonic shear imaging is an excel￾lent tool for diagnosing fibrosis stages F≥3 and F=438 but is less accurate for stages F≥1 and F≥2. Fagan plot analysis showed promising performance of the technique. When pretest probability was 50%, SuperSonic shear imaging had high posttest probability (93% for F≥1, 82% for F≥2, 85% for F≥3, and 86% for F=4) for staging liver fibrosis correctly after positive measurements. With negative results, it had low probability (19% for F≥1, 17% for F≥2, 11% for F≥3, and 13% for F=4) of wrong diagnoses. Our study demon￾strates that SuperSonic shear imaging can stage liver fibro￾sis, but it alone is not enough in clinical practice; however, it will be helpful when combined with other clinical results. In other ways, several studies demonstrated that about 3 valid SuperSonic shear imaging measurements were enough for assessment of liver fibrosis,39,40 and the interoperator and intraoperator reproducibility was good.41These results sug￾gests that SuperSonic shear imaging can provide reliable and efficient service in daily busy medical work. Figure 1. Forest plots of sensitivity and specificity using a bivariate mixed-effects binary regression model for F≥1, F≥2, F≥3, and F=4. 3502jum279-400 copy_Layout 1 1/20/16 12:46 PM Page 334

Feng et al-SuperSonic Shear Imaging for Staging of Liver Fibrosis The quality assessment in our meta-analysis showed Some studies showed a high risk ofbias for flow and timing that most of the studies'index tests were judged to have a high because not all patients were analyzed.In contrast,most risk ofbias because prespecified cutoffvalues were not used. studies had acceptable biopsy and elastographic quality. In the included studies,the cutoff values were different for In our results,the heterogeneity was significant,and the same fibrosis stages or overlapped among different different fibrosis staging systems and different BMI levels stages.Results with optimal cutoff values may increase the failed to explain this finding in the sensitivity analysis.It may sensitivities and specificities artificially.Using an independ- be explained by differences in sample sizes,ages,cutoff ent"validation cohort"to validate the cutoff values of the values,etiologies,and ethnicities.In the subgroup analy- "index cohort"may yield more accurate results.Therefore, ses,the results suggested that different causes of fibrosis we should be cautious in interpretation of pooled results. and racial differences could affect the heterogeneity. Figure 2.Summary ROC (SROC)curves for F21,F22,F23,and F=4.SENS indicates sensitivity;and SPEC,specificity. SROC for F>1 SROC for F>2 1.0- 101 00 ⊙ ⊙ 8 0 0.5 0.5 Observed Data Observed Data sPEC=0.950.75-0.99 SPEC=0.810.74-087 SROC Curve SROC Curve AUC=0.87[0.84-0.90] AUC=0.85[0.81-0.88 95%Confidence Contour 95%Confidence Contour 0.0- 0.0- 1.0 0.5 00 1.0 0.5 0.0 Specificity Specificity SROC for F>3 SROC for F=4 1.07 1.0 0.5 0.5 Observed Data Observed Data ◆ 5PEC=0.840.77-0.89 SPEC=0.86[081-0.90] SROC Curve SROC Curve AUC=0.930.91-0.95] AUC=0.93[0.90-0.95] 95%Confidence Contour 95%Confidence Contour 0. 0. 1.0 0.5 0.0 1.0 0.5 0.0 Specificity Specificity JUltrasound Med 2016:35:329-339 335

The quality assessment in our meta-analysis showed that most of the studies’ index tests were judged to have a high risk of bias because prespecified cutoff values were not used. In the included studies, the cutoff values were different for the same fibrosis stages or overlapped among different stages. Results with optimal cutoff values may increase the sensitivities and specificities artificially. Using an independ￾ent “validation cohort” to validate the cutoff values of the “index cohort” may yield more accurate results. Therefore, we should be cautious in interpretation of pooled results. Some studies showed a high risk of bias for flow and timing because not all patients were analyzed. In contrast, most studies had acceptable biopsy and elastographic quality. In our results, the heterogeneity was significant, and different fibrosis staging systems and different BMI levels failed to explain this finding in the sensitivity analysis. It may be explained by differences in sample sizes, ages, cutoff values, etiologies, and ethnicities. In the subgroup analy￾ses, the results suggested that different causes of fibrosis and racial differences could affect the heterogeneity. J Ultrasound Med 2016; 35:329–339 335 Feng et al—SuperSonic Shear Imaging for Staging of Liver Fibrosis Figure 2. Summary ROC (SROC) curves for F≥1, F≥2, F≥3, and F=4. SENS indicates sensitivity; and SPEC, specificity. 3502jum279-400 copy_Layout 1 1/20/16 12:46 PM Page 335

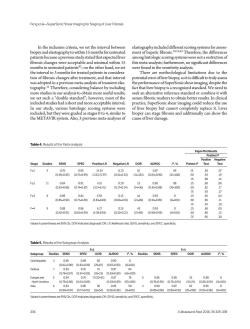

Feng et al-SuperSonic Shear Imaging for Staging of Liver Fibrosis In the inclusion criteria,we set the interval between elastography included different scoring systems for assess- biopsy and elastography to within 15 months for untreated ment of hepatic fibrosis.121343 Therefore,the differences patients because a previous study stated that expected liver among histologic scoring systems were not a restriction of fibrosis changes were acceptable and minimal within 15 this meta-analysis;furthermore,no significant differences months in untreated patients2;on the other hand,we set were found in the sensitivity analysis. the interval to 3 months for treated patients in considera- There are methodological limitations due to the tion of fibrosis changes after treatment,and that interval potential error ofliver biopsy,so it is difficult to truly assess was adopted in a previous meta-analysis of transient elas- the performance of SuperSonic shear imaging,despite the tography.Therefore,considering balance by including fact that liver biopsy is a recognized standard.We need to more studies in our analysis to obtain more useful results, seek an alternative reference standard or combine it with we set such a"double standard";however,most of the serum fibrotic markers to obtain better results.In clinical included studies had a short and more acceptable interval. practice,SuperSonic shear imaging could reduce the use In our study,various histologic scoring systems were of liver biopsy but cannot completely replace it.Liver included,but they were graded as stages 0 to 4,similar to biopsy can stage fibrosis and additionally can show the the METAVIR system.Also,3 previous meta-analyses of cause of liver damage. Table 4.Results of the Meta-analysis Fagan Plot Results PosttestP Positive Negative Stage Studies SENS SPEC Positive LR Negative LR DOR AUROC 12,% PretestP Test Test F21 078 0.95 14.34 0.23 曰 0.87 69 .83 .07 (0.69-0.85) (075-0.99) (2.82-72.97) (016-0.33) (11-334)(0.84-0.90) 32-100) 50 93 19 .75 98 .41 F22 11 0.84 0.81 4.51 0.20 23 0.85 88 25 60 06 (0.81-0.86) (074-0.87 317-6.41) (017-024) 14-36) (0.81-088) (76-100) 50 .82 .75 93 37 F23 8 0.89 0.84 5.55 013 44 0.93 0 25 65 04 (0.85-093) (077-0.89) 6.83-8.03) (0.09-019) (22-89) (0.91-0.95) (0-100) 50 85 1 .75 9 28 F=4 9 0.88 0.86 627 05 43 093 0 25 .68 (0.82-0.91) (0.81-0.90) (4.398.93) (010-0.22) (22-85)(0.90-0.95) (0-100) 50 13 75 95 30 Values in parentheses are 95%Cls.DOR indicates diagnostic OR:LR,likelihood ratio:SENS,sensitivity:and SPEC,specificity. Table 5.Results of the Subgroup Analysis F≥2 F=4 Subgroup Studies SENS SPEC DOR AUROC 12,%Studies SENS SPEC DOR AUROC 2% Viral hepatitis 0.86 0.89 50 090 0 (082-0.90)(0.83-0.93)(29-87(0.87-0.93) (0-100) Various 7 083 076 15 0.87 84 (0.78-0.87 (0.67-0.83)10-23)(0.83-0.89) (66-100) Europe and 5 0.84 0.76 17(10-31) 0.87 78 0.85 0.85 33 0.88 0 North America (079-088) (0.64-085) (0.83-0.89) (53-100) (0.78-0.90) (0.76-0.91 (15-74) (0.85-091)(0-100) Asia 6 0.84 0.85 30 0.85 50 0.90 0.87 63 0.95 0 (0.80-0.87(077-0.91)(16-54)(0.82-0.88) (0-100) (0.80-0.96)(0.80-0.92)(20-200)(0.92-0.96)(0-100) Values in parentheses are 95%Cls.DOR indicates diagnostic OR:SENS,sensitivity:and SPEC,specificity. 336 J Ultrasound Med 2016:35:329-339

In the inclusion criteria, we set the interval between biopsy and elastography to within 15 months for untreated patients because a previous study stated that expected liver fibrosis changes were acceptable and minimal within 15 months in untreated patients42; on the other hand, we set the interval to 3 months for treated patients in considera￾tion of fibrosis changes after treatment, and that interval was adopted in a previous meta-analysis of transient elas￾tography.11 Therefore, considering balance by including more studies in our analysis to obtain more useful results, we set such a “double standard”; however, most of the included studies had a short and more acceptable interval. In our study, various histologic scoring systems were included, but they were graded as stages 0 to 4, similar to the METAVIR system. Also, 3 previous meta-analyses of elastography included different scoring systems for assess￾ment of hepatic fibrosis.12,13,43 Therefore, the differences among histologic scoring systems were not a restriction of this meta-analysis; furthermore, no significant differences were found in the sensitivity analysis. There are methodological limitations due to the potential error of liver biopsy, so it is difficult to truly assess the performance of SuperSonic shear imaging, despite the fact that liver biopsy is a recognized standard. We need to seek an alternative reference standard or combine it with serum fibrotic markers to obtain better results. In clinical practice, SuperSonic shear imaging could reduce the use of liver biopsy but cannot completely replace it. Liver biopsy can stage fibrosis and additionally can show the cause of liver damage. Feng et al—SuperSonic Shear Imaging for Staging of Liver Fibrosis 336 J Ultrasound Med 2016; 35:329–339 Table 4. Results of the Meta-analysis Fagan Plot Results Posttest P Positive Negative Stage Studies SENS SPEC Positive LR Negative LR DOR AUROC I 2, % Pretest P Test Test F≥1 4 0.78 0.95 14.34 0.23 62 0.87 69 25 .83 .07 (0.69–0.85) (0.75–0.99) (2.82–72.97) (0.16–0.33) (11–334) (0.84–0.90) (32–100) .50 .93 .19 .75 .98 .41 F≥2 11 0.84 0.81 4.51 0.20 23 0.85 88 .25 .60 .06 (0.81–0.86) (0.74–0.87) (3.17–6.41) (0.17–0.24) (14–36) (0.81–0.88) (76–100) .50 .82 .17 .75 .93 .37 F≥3 8 0.89 0.84 5.55 0.13 44 0.93 0 .25 .65 .04 (0.85–0.93) (0.77–0.89) (3.83–8.03) (0.09–0.19) (22–89) (0.91–0.95) (0–100) .50 .85 .11 .75 .94 .28 F=4 9 0.88 0.86 6.27 0.15 43 0.93 0 .25 .68 .05 (0.82–0.91) (0.81–0.90) (4.39-8.93) (0.10–0.22) (22–85) (0.90–0.95) (0–100) .50 .86 .13 .75 .95 .30 Values in parentheses are 95% CIs. DOR indicates diagnostic OR; LR, likelihood ratio; SENS, sensitivity; and SPEC, specificity. Table 5. Results of the Subgroup Analysis F≥2 F=4 Subgroup Studies SENS SPEC DOR AUROC I2, % Studies SENS SPEC DOR AUROC I2, % Viral hepatitis 4 0.86 0.89 50 0.90 0 (0.82–0.90) (0.83–0.93) (29–87) (0.87–0.93) (0–100) Various 7 0.83 0.76 15 0.87 84 (0.78–0.87) (0.67–0.83) (10–23) (0.83–0.89) (66–100) Europe and 5 0.84 0.76 17 (10–31) 0.87 78 5 0.85 0.85 33 0.88 0 North America (0.79–0.88) (0.64–0.85) (0.83–0.89) (53–100) (0.78–0.90) (0.76–0.91) (15–74) (0.85–0.91) (0–100) Asia 6 0.84 0.85 30 0.85 50 4 0.90 0.87 63 0.95 0 (0.80–0.87) (0.77–0.91) (16–54) (0.82–0.88) (0–100) (0.80–0.96) (0.80–0.92) (20–200) (0.92–0.96) (0–100) Values in parentheses are 95% CIs. DOR indicates diagnostic OR; SENS, sensitivity; and SPEC, specificity. 3502jum279-400 copy_Layout 1 1/20/16 12:46 PM Page 336

Feng et al-SuperSonic Shear Imaging for Staging of Liver Fibrosis Our meta-analysis had several limitations.First,our in interpreting these results.Third,our study had insufficient results were pooled from patients with different causes of statistical power to assess the accuracy ofstage F21 because chronic liver disease.This factor is important because cut- only4 studies provided the data.Finally,most included stud- off values may depend on the etiology of liver disease;for ies were judged to have a high risk of bias,so our results we example,2 studies reported that cholestasis could increase have got may also have a significant bias. liver stiffness.4445 A subgroup analysis was performed to In conclusion,SuperSonic shear imaging could be address this issue for viral hepatitis and various causes,and used for staging of liver fibrosis,especially because it has it was easy to notice some difference in their results;however high diagnostic accuracy for severe fibrosis and cirrhosis. the data were insufficient to determine whether every cause However,cutoff values may depend on the etiology ofliver of liver disease had an influence on our results.Moreover, disease,which is important in daily clinical practice. some other factors,such as central venous pressure,may Therefore,further prospective multicenter studies with affect liver stiffness measurements,46 but such information large sample sizes for different etiologies of liver disease is more difficult to obtain.Second,significant heterogeneity are needed. was found for stages F21 and F22,so we should be cautious Figure 3.Deeks funnel plot asymmetry test for F21,F22.F23,and F=4.P<.10 suggests significant asymmetry of the funnel plot and a significant publication bias.ESS indicates effective sample size. F21 F≥2 p=0.31 .08 061 P60.85 O Study ⑥ Study Line resion .08 ④ 12 .1 农 .14 .1g 6 ③@ 10 100 1000 10 100 1000 Diagnostic Odds Ratio Diagnostic Odds Ratio F≥3 F=4 p=0.95 06 p883 05 O Study ⊙ O Study Regression Regression .08 Line Line 1 ,12 ③ .15 ⊙ 14- 0 10 100 1000 10 100 1000 Diagnostic Odds Ratio Diagnostic Odds Ratio JUltrasound Med 2016:35:329-339 337

Our meta-analysis had several limitations. First, our results were pooled from patients with different causes of chronic liver disease. This factor is important because cut￾off values may depend on the etiology of liver disease; for example, 2 studies reported that cholestasis could increase liver stiffness.44,45 A subgroup analysis was performed to address this issue for viral hepatitis and various causes, and it was easy to notice some difference in their results; however the data were insufficient to determine whether every cause of liver disease had an influence on our results. Moreover, some other factors, such as central venous pressure, may affect liver stiffness measurements,46 but such information is more difficult to obtain. Second, significant heterogeneity was found for stages F≥1 and F≥2, so we should be cautious in interpreting these results. Third, our study had insufficient statistical power to assess the accuracy of stage F≥1 because only 4 studies provided the data. Finally, most included stud￾ies were judged to have a high risk of bias, so our results we have got may also have a significant bias. In conclusion, SuperSonic shear imaging could be used for staging of liver fibrosis, especially because it has high diagnostic accuracy for severe fibrosis and cirrhosis. However, cutoff values may depend on the etiology of liver disease, which is important in daily clinical practice. Therefore, further prospective multicenter studies with large sample sizes for different etiologies of liver disease are needed. J Ultrasound Med 2016; 35:329–339 337 Feng et al—SuperSonic Shear Imaging for Staging of Liver Fibrosis Figure 3. Deeks funnel plot asymmetry test for F≥1, F≥2, F≥3, and F=4. P < .10 suggests significant asymmetry of the funnel plot and a significant publication bias. ESS indicates effective sample size. 3502jum279-400 copy_Layout 1 1/20/16 12:46 PM Page 337

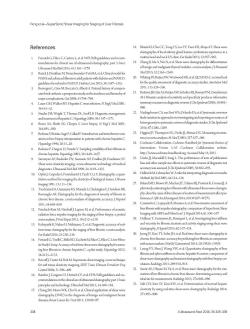

Feng et al-SuperSonic Shear Imaging for Staging of Liver Fibrosis References 18.Bhatia KS,Cho CC,TongCS,Lee YY,Yuen EH,Ahuja AT.Shear wave elastography of focal salivary gland lesions:preliminary experience ina 1.Ferraioli G,Filice C,Castera L,et al WFUMB guidelines and recom- routine head and neck US dinic.Eur Radiol2012:22957-965. mendations for clinical use of ultrasound elastography,part 3:liver. 19.Zhang B,Ma X.Wu N,et al Shear wave elastography for differentiation Ultrasound Med Biol 2015:41:1161-1179. of benign and malignant thyroid nodules:a meta-analysis.I Ultrasound 2.Bazick I,Donithan M,Neuschwander-Tetri BA,et al Clinical model for M2013:32:2163-2169 NASHand advanced fibrosis in adult patients with diabetesand NAFLD: 20.Whiting PF,Rutjes AW,Westwood ME,et al QUADAS-2:arevised tool guidelines for referralin NAFLD.Diabetes Care 2015;38:1347-1355. for the quality assessment of diagnostic accuracy studies.A Intem Med 3. BenvegnuL,Gios M,Boccato S,AlbertiA Natural history of compen- 2011:155:529-536 sated viral cirrhosis:a prospective study on the incidence and hierarchy of 21.Reitsma JB,Glas AS,Rutjes AW,Scholten RJ,Bossuyt PM,Zwinderman major complications.Gut 2004;53:744-749 AH Bivariate analysis of sensitivity and specificity produces informative 4 Lauer GM,Wallker BD.Hepatitis Cvirus infection.NEnglJMed2001; summary measures in diagnostic reviews.IClm Epidemiol2005:58:982- 34541-52 990. Strader DB,Wright T,Thomas DL,Seeff LB.Diagnosis,management, 22.Naaktgeboren CA,van Enst WA,Ochodo EA,etal.Systematic overview and treatment ofhepatitis C.Heputology2004;39:1147-1171 finds variation in approachestoinvestigating andreportingon sourcesof 6. Bravo AA,Sheth SG,Chopra S.Liver biopsy.N Engl J Med 2001; heterogeneityin systematicreviews of diagnosticstudies.Cn Epidemio 344:495-500. 2014:67:1200-1209. 7.BedossaP,Bioulac-SageP,Callard P.Intraobserver andinterobserver vari 23.Higgins IP,Thompson SG,Deeks II.Altman DG.Measuring inconsis. ations in liver biopsy interpretation in patients with chronic hepatitis C. tency in meta-analyses.Br Med 12003:327:557-560. Hepatology 1994;20:15-20. 24.Cochrane Collaboration.Cochrane Handbook for Systematic Reviews of Bedossa P,Dargere D,Paradis V.Sampling variability ofliver fibrosis in Interventions:Version 5.1.0.Cochrane Collaboration website chronic hepatitis.Hepatology 2003;38:1449-1457 http://www.cochrane-handbookorg Accessed May 18,2015. 9.Sarvazyan AP,Rudenko OV,Swanson SD,Fowlkes JB,Emelianov SY. 25.Deeks II,Macaskill P,Irwig L The performance of tests of publication Shear wave elasticity imaging:a newultrasonic technology of medical bias and other sample size effects in systematic reviews of diagnostic test diagnostics.Ultrasound Med Biol 1998:24:1419-1435 accuracywas assessed J Clin Epidemiol 2005:58:882-893. 10.Ophir J,Cespedes I,Ponnekanti H,Yazdi Y,LiX.Elastography:a quan- 26.Hellmich M,Lehmacher W.Aruler for interpreting diagnostictest results titative method for imaging the elasticity of biological tissues.Ultrason Methods Inf Med.2005:44:124-126 magg1991;13:111-134 27.BelandMD,Brown SF,MachanJT,Taliano RJ,Promrat K,Cronan JJ.A 11.Tsochatzis EA Gurusamy KS,Ntaoula S,Cholongitas E Davidson BR, pilot study estimatingliver fibrosis with ultrasound shear-waveelastogra- Burroughs AK.Elastography for the diagnosis of severity of fibrosis in phy:does the cause ofliver disease orlocation of measurement affect per- chronic liver disease:a meta-analysis of diagnostic accuracy.J Hepatol formance?AJRAm J Roentgonol 2014;203:W267-W273. 2011:54:650-659. 28 Cassinotto C,Lapuyade B,Mouries A,et al Non-invasive assessment of 12. Friedrich-Rust M,NierhoffJ,Lupsor M,et al Performance ofacoustic liver fibrosis with impulse elastography:comparison of SuperSonic Shear radiation force impulse imaging for the staging ofliver biopsy:a pooled Imaging with ARFI and FibroScan.J Hepatol2014:61:550-557. meta-analysis.JViral Hepat 2012:19:e212-e219. 29.Deffieux T,Gennisson JL,Bousquet L,et al.Investigating liver stiffness 13.KobayashiK Nakao H,Nishiyama T,et al Diagnostic accuracy ofreal and viscosity for fibrosis,steatosis and activity staging using shear wave time tissue elastography for the staging ofliver fibrosis:a meta-analysis elastography.JHepatol2015;62:317-324. Eur Radiol2014:25230-238. 30.Jeong JY,Kim TY,Sohn JH,et al Real time shear wave elastography in 14.Ferraioli G,Tinelli C,Bello BD,Zicchetti M.Filice G,Filice C:Liver Fibro- chronic liver diseases:accuracy for predicting liver fibrosis,in comparison sis Study Group.Accuracy ofreal-time shear wave elastography for assess- with serum markers.World J Gastroenterol 2014;20:13920-13929. ing liver fibrosis in chronic hepatitis C:a pilot study.Hepatology 2012; 31.Leung VY,Shen J,Wong VW,et al Quantitative elastography ofliver 56:2125-2133. fibrosis and spleen stiffness in chronic hepatitis B carriers:comparison of 15.BercoffJ,Tanter M,Fink M.Supersonic shear imaging:anewtechnique shear-wave elastography and transient elastography withliverbiopsy cor for soft tissue elasticity mapping.IEEE Trans Ultrason Ferroclectr Freg relation Radiology 2013:269:910-918. Control2004:51:396-409】 32.Samir AE,Dhyani M VijA,et al.Shear-wave elastography for the esti- 16.Bamber J,Cosgrove D,Dietrich CF,etal EFSUMB guidelines and rec mation ofliver fibrosis in chronic liver disease:determining accuracy and ommendations on the clinical use ofultrasound elastography,part I:basic ideal site for measurement Radiology 2015;274:888-896. principles and technology.Ultrasciall Med 2013;34:169-184. 33.Suh CH,Kim SY,Kim KW,et al.Determination of normal hepatic 17.Chang JM,Moon WK.Cho N,et al Clinical application of shear wave elasticity by using real-time shear-wave elastography.Radilo 2014; elastography (SWE)in the diagnosis of benign and malignant breast 271:895-900. diseases Breast Cancer Res Treat 2011:129:89-97. 338 J Ultrasound Med 2016:35:329-339

References 1. Ferraioli G, Filice C, Castera L, et al. WFUMB guidelines and recom￾mendations for clinical use of ultrasound elastography, part 3: liver. Ultrasound Med Biol 2015; 41:1161–1179. 2. Bazick J, Donithan M, Neuschwander-Tetri BA, et al. Clinical model for NASH and advanced fibrosis in adult patients with diabetes and NAFLD: guidelines for referral in NAFLD. Diabetes Care 2015; 38:1347–1355. 3. Benvegnu L, Gios M, Boccato S, Alberti A. Natural history of compen￾sated viral cirrhosis: a prospective study on the incidence and hierarchy of major complications. Gut 2004; 53:744–749. 4. Lauer GM, Walker BD. Hepatitis C virus infection. N Engl J Med 2001; 345:41–52. 5. Strader DB, Wright T, Thomas DL, Seeff LB. Diagnosis, management, and treatment of hepatitis C. Hepatology 2004; 39:1147–1171. 6. Bravo AA, Sheth SG, Chopra S. Liver biopsy. N Engl J Med 2001; 344:495–500. 7. Bedossa P, Bioulac-Sage P, Callard P. Intraobserver and interobserver vari￾ations in liver biopsy interpretation in patients with chronic hepatitis C. Hepatology 1994; 20:15–20. 8. Bedossa P, Dargere D, Paradis V. Sampling variability of liver fibrosis in chronic hepatitis. Hepatology 2003; 38:1449–1457. 9. Sarvazyan AP, Rudenko OV, Swanson SD, Fowlkes JB, Emelianov SY. Shear wave elasticity imaging: a new ultrasonic technology of medical diagnostics. Ultrasound Med Biol 1998; 24:1419–1435. 10. Ophir J, Cespedes I, Ponnekanti H, Yazdi Y, Li X. Elastography: a quan￾titative method for imaging the elasticity of biological tissues. Ultrason Imaging 1991; 13:111–134. 11. Tsochatzis EA, Gurusamy KS, Ntaoula S, Cholongitas E, Davidson BR, Burroughs AK. Elastography for the diagnosis of severity of fibrosis in chronic liver disease: a meta-analysis of diagnostic accuracy. J Hepatol 2011; 54:650–659. 12. Friedrich-Rust M, Nierhoff J, Lupsor M, et al. Performance of acoustic radiation force impulse imaging for the staging of liver biopsy: a pooled meta-analysis.J Viral Hepat 2012; 19:e212–e219. 13. Kobayashi K, Nakao H, Nishiyama T, et al. Diagnostic accuracy of real￾time tissue elastography for the staging of liver fibrosis: a meta-analysis. Eur Radiol 2014; 25:230–238. 14. Ferraioli G, Tinelli C, Bello BD, Zicchetti M, Filice G, Filice C; Liver Fibro￾sis Study Group. Accuracy of real-time shear wave elastography for assess￾ing liver fibrosis in chronic hepatitis C: a pilot study. Hepatology 2012; 56:2125–2133. 15. Bercoff J, Tanter M, Fink M. Supersonic shear imaging: a new technique for soft tissue elasticity mapping. IEEE Trans Ultrason Ferroelectr Freq Control 2004; 51:396–409. 16. Bamber J, Cosgrove D, Dietrich CF, et al. EFSUMB guidelines and rec￾ommendations on the clinical use of ultrasound elastography, part 1: basic principles and technology. Ultraschall Med 2013; 34:169–184. 17. Chang JM, Moon WK, Cho N, et al. Clinical application of shear wave elastography (SWE) in the diagnosis of benign and malignant breast diseases. Breast Cancer Res Treat 2011; 129:89–97. 18. Bhatia KS, Cho CC, Tong CS, Lee YY, Yuen EH, Ahuja AT. Shear wave elastography of focal salivary gland lesions: preliminary experience in a routine head and neck US clinic. Eur Radiol 2012; 22:957–965. 19. Zhang B, Ma X, Wu N, et al. Shear wave elastography for differentiation of benign and malignant thyroid nodules: a meta-analysis. J Ultrasound Med 2013; 32:2163–2169. 20. Whiting PF, Rutjes AW, Westwood ME, et al. QUADAS-2: a revised tool for the quality assessment of diagnostic accuracy studies. Ann Intern Med 2011; 155:529–536. 21. Reitsma JB, Glas AS, Rutjes AW, Scholten RJ, Bossuyt PM, Zwinderman AH. Bivariate analysis of sensitivity and specificity produces informative summary measures in diagnostic reviews. J Clin Epidemiol 2005; 58:982– 990. 22. Naaktgeboren CA, van Enst WA, Ochodo EA, et al. Systematic overview finds variation in approaches to investigating and reporting on sources of heterogeneity in systematic reviews of diagnostic studies. J Clin Epidemiol 2014; 67:1200–1209. 23. Higgins JP, Thompson SG, Deeks JJ, Altman DG. Measuring inconsis￾tency in meta-analyses. Br Med J 2003; 327:557–560. 24. Cochrane Collaboration. Cochrane Handbook for Systematic Reviews of Interventions: Version 5.1.0. Cochrane Collaboration website. http://www.cochrane-handbook.org. Accessed May 18, 2015. 25. Deeks JJ, Macaskill P, Irwig L. The performance of tests of publication bias and other sample size effects in systematic reviews of diagnostic test accuracy was assessed. J Clin Epidemiol 2005; 58:882–893. 26. Hellmich M, Lehmacher W. A ruler for interpreting diagnostic test results. Methods Inf Med 2005; 44:124–126. 27. Beland MD, Brown SF, Machan JT, Taliano RJ, Promrat K, Cronan JJ. A pilot study estimating liver fibrosis with ultrasound shear-wave elastogra￾phy: does the cause of liver disease or location of measurement affect per￾formance? AJR Am J Roentgenol 2014; 203:W267–W273. 28. Cassinotto C, Lapuyade B, Mouries A, et al. Non-invasive assessment of liver fibrosis with impulse elastography: comparison of SuperSonic Shear Imaging with ARFI and FibroScan®. J Hepatol 2014; 61:550–557. 29. Deffieux T, Gennisson JL, Bousquet L, et al. Investigating liver stiffness and viscosity for fibrosis, steatosis and activity staging using shear wave elastography. J Hepatol 2015; 62:317–324. 30. Jeong JY, Kim TY, Sohn JH, et al. Real time shear wave elastography in chronic liver diseases: accuracy for predicting liver fibrosis, in comparison with serum markers. World J Gastroenterol 2014; 20:13920–13929. 31. Leung VY, Shen J, Wong VW, et al. Quantitative elastography of liver fibrosis and spleen stiffness in chronic hepatitis B carriers: comparison of shear-wave elastography and transient elastography with liver biopsy cor￾relation. Radiology 2013; 269:910–918. 32. Samir AE, Dhyani M, Vij A, et al. Shear-wave elastography for the esti￾mation of liver fibrosis in chronic liver disease: determining accuracy and ideal site for measurement. Radiology 2015; 274:888–896. 33. Suh CH, Kim SY, Kim KW, et al. Determination of normal hepatic elasticity by using real-time shear-wave elastography. Radiology 2014; 271:895–900. Feng et al—SuperSonic Shear Imaging for Staging of Liver Fibrosis 338 J Ultrasound Med 2016; 35:329–339 3502jum279-400 copy_Layout 1 1/20/16 12:46 PM Page 338
