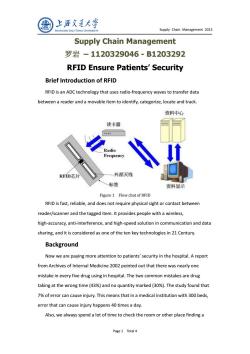

上海究通大学 SHANGHAI JIAO TONG UNIVERSITY Supply Chain Management 2013 Supply Chain Management 罗岩-1120329046-B1203292 RFID Ensure Patients'Security Brief Introduction of RFID RFID is an ADC technology that uses radio-frequency waves to transfer data between a reader and a movable item to identify,categorize,locate and track. 资料中心 读卡器 Radio Frequency RFD芯片 外部天线 标签 资料显示 Figure 1 Flow chat of RFID RFID is fast,reliable,and does not require physical sight or contact between reader/scanner and the tagged item.It provides people with a wireless, high-accuracy,anti-interference,and high-speed solution in communication and data sharing,and it is considered as one of the ten key technologies in 21 Century. Background Now we are paying more attention to patients'security in the hospital.A report from Archives of Internal Medicine 2002 pointed out that there was nearly one mistake in every five drug using in hospital.The two common mistakes are drug taking at the wrong time(43%)and no quantity marked(30%).The study found that 7%of error can cause injury.This means that in a medical institution with 300 beds, error that can cause injury happens 40 times a day. Also,we always spend a lot of time to check the room or other place finding a Page 1 Total 4

Supply Chain Management 2013 Page 1 Total 4 Supply Chain Management 罗岩 – 1120329046 - B1203292 RFID Ensure Patients’ Security Brief Introduction of RFID RFID is an ADC technology that uses radio-frequency waves to transfer data between a reader and a movable item to identify, categorize, locate and track. Figure 1 Flow chat of RFID RFID is fast, reliable, and does not require physical sight or contact between reader/scanner and the tagged item. It provides people with a wireless, high-accuracy, anti-interference, and high-speed solution in communication and data sharing, and it is considered as one of the ten key technologies in 21 Century. Background Now we are paying more attention to patients’ security in the hospital. A report from Archives of Internal Medicine 2002 pointed out that there was nearly one mistake in every five drug using in hospital. The two common mistakes are drug taking at the wrong time (43%) and no quantity marked (30%). The study found that 7% of error can cause injury. This means that in a medical institution with 300 beds, error that can cause injury happens 40 times a day. Also, we always spend a lot of time to check the room or other place finding a

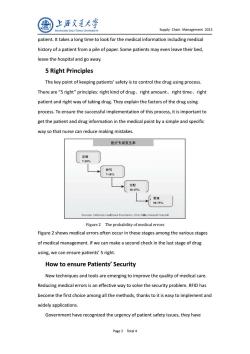

品 上海究通大学 SHANGHAI JIAO TONG UNIVERSITY Supply Chain Management 2013 patient.It takes a long time to look for the medical information including medical history of a patient from a pile of paper.Some patients may even leave their bed, leave the hospital and go away. 5 Right Principles The key point of keeping patients'safety is to control the drug using process. There are“5 right'"principles:right kind of drug、right amount、right time、right patient and right way of taking drug.They explain the factors of the drug using process.To ensure the successful implementation of this process,it is important to get the patient and drug information in the medical point by a simple and specific way so that nurse can reduce making mistakes. 医疗失误发生率 定制 7-20% 抄写 7-10% 分配 10-15% 管理 50-75% Sources:Califomia Hoakthcare Foundation:Ohio Valley Goneral Hospital Figure 2 The probability of medical errors Figure 2 shows medical errors often occur in these stages among the various stages of medical management.If we can make a second check in the last stage of drug using,we can ensure patients'5 right. How to ensure Patients'Security New techniques and tools are emerging to improve the quality of medical care. Reducing medical errors is an effective way to solve the security problem.RFID has become the first choice among all the methods,thanks to it is easy to implement and widely applications. Government have recognized the urgency of patient safety issues,they have Page 2 Total 4

Supply Chain Management 2013 Page 2 Total 4 patient. It takes a long time to look for the medical information including medical history of a patient from a pile of paper. Some patients may even leave their bed, leave the hospital and go away. 5 Right Principles The key point of keeping patients’ safety is to control the drug using process. There are “5 right” principles: right kind of drug、right amount、right time、right patient and right way of taking drug. They explain the factors of the drug using process. To ensure the successful implementation of this process, it is important to get the patient and drug information in the medical point by a simple and specific way so that nurse can reduce making mistakes. Figure 2 The probability of medical errors Figure 2 shows medical errors often occur in these stages among the various stages of medical management. If we can make a second check in the last stage of drug using, we can ensure patients’ 5 right. How to ensure Patients’ Security New techniques and tools are emerging to improve the quality of medical care. Reducing medical errors is an effective way to solve the security problem. RFID has become the first choice among all the methods, thanks to it is easy to implement and widely applications. Government have recognized the urgency of patient safety issues, they have

上海究通大学 SHANGHAI JIAO TONG UNIVERSITY Supply Chain Management 2013 established the objectives and guiding principles of medical error reduction.FDA (The United States Food and Drug Administration)released the code rules on February 25,2004,asked drug makers,repackaging and labelers to past the bar code on inner packing in most prescription drugs,which will contain the product of national drug code(NDC)number.FDA forecast that the rule will reduce 500,000 medical errors in the next 20 years. How does RFID Solve the Problem When a patient goes to the hospital,he will receive a wristband which is made of RFID technique.It contains the information of a patient,for example,name,age, blood type,medical history,bed Number,drug sensitive to(过敏原)，when he need to get an injection,the amount of the injection and so on. (RFID) ((RFID》 RFID) Figure 3 RFID Wristband Before drug using,nurse can check whether patient and medicine are matching by scanning wristband and medicine code.If they are matching and the time amount are right,then the patient takes the medicine.A study in the United States Veterans Administration found,this method will reduce 86.2%of medical errors. Hospital can put signal reception and transmission equipment in the room,hall or other areas forming a network.When a patient walks around the equipment can get his immediate position,status and transmit the information through the network, then,doctors will read it out in the control software and provide better medical care. Page 3 Total 4

Supply Chain Management 2013 Page 3 Total 4 established the objectives and guiding principles of medical error reduction. FDA (The United States Food and Drug Administration) released the code rules on February 25, 2004, asked drug makers, repackaging and labelers to past the bar code on inner packing in most prescription drugs, which will contain the product of national drug code (NDC) number. FDA forecast that the rule will reduce 500,000 medical errors in the next 20 years. How does RFID Solve the Problem When a patient goes to the hospital, he will receive a wristband which is made of RFID technique. It contains the information of a patient, for example, name, age, blood type, medical history, bed Number, drug sensitive to(过敏原), when he need to get an injection, the amount of the injection and so on. Figure 3 RFID Wristband Before drug using, nurse can check whether patient and medicine are matching by scanning wristband and medicine code. If they are matching and the time 、 amount are right, then the patient takes the medicine. A study in the United States Veterans Administration found, this method will reduce 86.2% of medical errors. Hospital can put signal reception and transmission equipment in the room, hall or other areas forming a network. When a patient walks around the equipment can get his immediate position, status and transmit the information through the network, then, doctors will read it out in the control software and provide better medical care

上海文通大￥ SHANGHAI JIAO TONG UNIVERSITY Supply Chain Management 2013 Typical application(newborn baby safety management) When a baby is born,a soft wristband with a RFID label is fixed around his feet. The baby's health record,birth date,time and parents'names and other information is input to the system on the central server.Then the staff use a RFID reader to read the ID code assigned to the baby.ID code and the data stored in the software are matching.If someone tries to take the baby away or remove wristband,the system will alarming. ·育理室的新生儿 LAN ·有源RFID读卡机 医院HIS系统 ·婴儿标签 卜母婴同室 2 LAN 。母亲标签4 ·有源RFID读卡机 ·婴儿标签✉ ·婴儿体温监测记录 ·婴儿位置定位追踪 LAN ·标签运作状态 。护理监测 Figure 4 newborn baby safety management Problem Remaining One of the problems that RFID brings to us is the invasion of privacy侵犯隐私). Because the wristband contains too much private information(cellphone number or home address)that we do not want others know.If the hospital don't have a better control of the information or even sell it for commercial reasons,it can be harmful to patient.In my opinion,a better authority management is the key. Conclusion RFID is a potential technology that can reduce the drug using error and ensure patient security.Only by a better supervision and management can we benefit from it and lead a healthy and convenient life. Page 4 Total 4

Supply Chain Management 2013 Page 4 Total 4 Typical application (newborn baby safety management) When a baby is born, a soft wristband with a RFID label is fixed around his feet. The baby's health record, birth date, time and parents' names and other information is input to the system on the central server. Then the staff use a RFID reader to read the ID code assigned to the baby. ID code and the data stored in the software are matching. If someone tries to take the baby away or remove wristband, the system will alarming. Figure 4 newborn baby safety management Problem Remaining One of the problems that RFID brings to us is the invasion of privacy(侵犯隐私). Because the wristband contains too much private information (cellphone number or home address) that we do not want others know. If the hospital don’t have a better control of the information or even sell it for commercial reasons, it can be harmful to patient. In my opinion, a better authority management is the key. Conclusion RFID is a potential technology that can reduce the drug using error and ensure patient security. Only by a better supervision and management can we benefit from it and lead a healthy and convenient life
