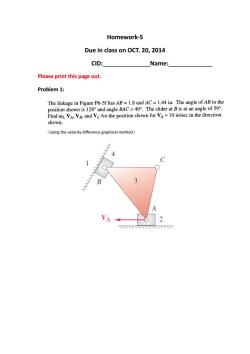

Homework-5 Due in class on OCT.20,2014 CID: Name: Please print this page out. Problem 1: The linkage in Figure P6-5f has AB=1.8 and AC=1.44 in.The angle of AB in the position shown is 128 and angle BAC=49.The slider at B is at an angle of 59. Find 03.VA,VB,and Vc for the position shown for V=10 in/sec in the direction shown. (Using the velocity difference graphical method) 4 B 3 A

Homework‐5 Due in class on OCT. 20, 2014 CID:               Name:                  Please print this page out. Problem 1: （Using the velocity difference graphical method）
