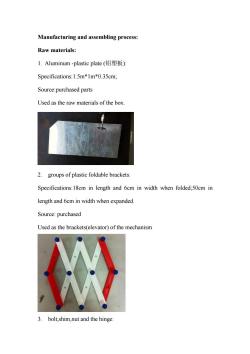

Manufacturing and assembling process: Raw materials: L.Aluminum-plastic plate(铝塑板)： Specifications:1.5m*1m*0.35cm; Source:purchased parts Used as the raw materials of the box. 2.groups of plastic foldable brackets: Specifications:18cm in length and 6cm in width when folded;50cm in length and 6cm in width when expanded. Source:purchased Used as the brackets(elevator)of the mechanism 3.bolt.shim,nut and the hinge:

Manufacturing and assembling process: Raw materials: 1. Aluminum -plastic plate (铝塑板): Specifications:1.5m*1m*0.35cm; Source:purchased parts Used as the raw materials of the box. 2. groups of plastic foldable brackets: Specifications:18cm in length and 6cm in width when folded;50cm in length and 6cm in width when expanded. Source: purchased Used as the brackets(elevator) of the mechanism 3. bolt,shim,nut and the hinge:

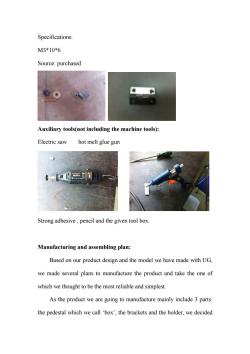

Specifications: M3*10*6 Source:purchased Auxiliary tools(not including the machine tools): Electric saw hot melt glue gun Strong adhesive,pencil and the given tool box. Manufacturing and assembling plan: Based on our product design and the model we have made with UG, we made several plans to manufacture the product and take the one of which we thought to be the most reliable and simplest. As the product we are going to manufacture mainly include 3 parts: the pedestal which we call 'box',the brackets and the holder,we decided

Specifications: M3*10*6 Source: purchased Auxiliary tools(not including the machine tools): Electric saw hot melt glue gun Strong adhesive , pencil and the given tool box. Manufacturing and assembling plan: Based on our product design and the model we have made with UG, we made several plans to manufacture the product and take the one of which we thought to be the most reliable and simplest. As the product we are going to manufacture mainly include 3 parts: the pedestal which we call ‘box’, the brackets and the holder, we decided

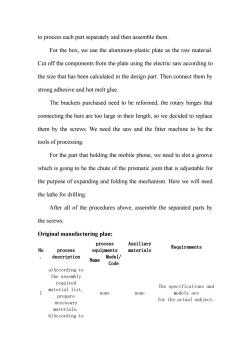

to process each part separately and then assemble them For the box,we use the aluminum-plastic plate as the raw material. Cut off the components from the plate using the electric saw according to the size that has been calculated in the design part.Then connect them by strong adhesive and hot melt glue. The brackets purchased need to be reformed,the rotary hinges that connecting the bars are too large in their length,so we decided to replace them by the screws.We need the saw and the fitter machine to be the tools of processing. For the part that holding the mobile phone,we need to slot a groove which is going to be the chute of the prismatic joint that is adjustable for the purpose of expanding and folding the mechanism.Here we will need the lathe for drilling. After all of the procedures above,assemble the separated parts by the screws. Original manufacturing plan: process Auxiliary No materials Requirements process equipments description Model/ Name Code a)According to the assembly required material list, The specifications and none none models are prepare for the actual subject. necessary materials. b)According to

to process each part separately and then assemble them. For the box, we use the aluminum-plastic plate as the raw material. Cut off the components from the plate using the electric saw according to the size that has been calculated in the design part. Then connect them by strong adhesive and hot melt glue. The brackets purchased need to be reformed, the rotary hinges that connecting the bars are too large in their length, so we decided to replace them by the screws. We need the saw and the fitter machine to be the tools of processing. For the part that holding the mobile phone, we need to slot a groove which is going to be the chute of the prismatic joint that is adjustable for the purpose of expanding and folding the mechanism. Here we will need the lathe for drilling. After all of the procedures above, assemble the separated parts by the screws. Original manufacturing plan: No . process description process equipments Auxiliary materials Requirements Name Model/ Code 1 a)According to the assembly required material list, prepare necessary materials. b)According to none none The specifications and models are for the actual subject

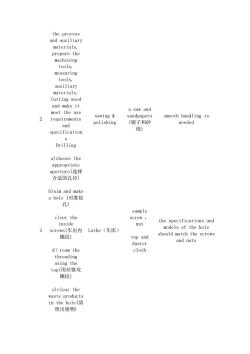

the process and auxiliary materials, prepare the machining tools, measuring tools, auxiliary materials. Cutting wood and make it a saw and meet the use 2 sawing sandpapers smooth handling is requirements polishing (锯子和砂 needed and specification 纸) Drilling a)choose the appropriate aperture(选择 合适的孔径) b)aim and make a hole(对准钻 孔) sample c)cut the screw inside the specifications and nut models of the hole screws(车出内 Lathe(车床) 螺纹) should match the screws tap and and nuts duster d)ream the cloth threading using the tap(用丝锥攻 螺纹) e)clear the waste products in the hole(清 理出废物)

the process and auxiliary materials, prepare the machining tools, measuring tools, auxiliary materials. 2 Cutting wood and make it meet the use requirements and specification s sawing & polishing a saw and sandpapers (锯子和砂 纸) smooth handling is needed 3 Drilling a)choose the appropriate aperture(选择 合适的孔径) b)aim and make a hole (对准钻 孔) c)cut the inside screws(车出内 螺纹) d）ream the threading using the tap(用丝锥攻 螺纹) e)clear the waste products in the hole(清 理出废物) Lathe（车床） sample screw ， nut tap and duster cloth the specifications and models of the hole should match the screws and nuts

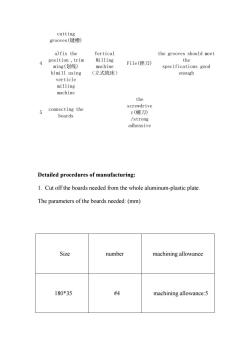

cutting grooves(键槽) a)fix the Vertical the grooves should meet 4 position,trim Milling File(锉刀) the ming(划线) machine specifications good b)mill using (立式铣床) enough verticle milling machine the screwdrive 5 connecting the r(螺刀) boards /strong adhensive Detailed procedures of manufacturing: 1.Cut off the boards needed from the whole aluminum-plastic plate The parameters of the boards needed:(mm) Size number machining allowance 180*35 #4 machining allowance:5

4 cutting grooves(键槽) a)fix the position ,trim ming(划线) b)mill using verticle milling machine Vertical Milling machine （立式铣床） File(锉刀) the grooves should meet the specifications good enough 5 connecting the boards the screwdrive r(螺刀) /strong adhensive Detailed procedures of manufacturing: 1. Cut off the boards needed from the whole aluminum-plastic plate. The parameters of the boards needed: (mm) Size number machining allowance 180*35 #4 machining allowance:5

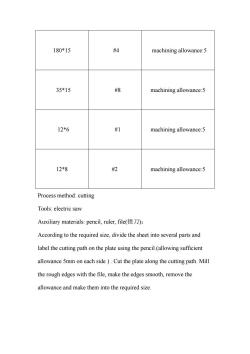

180*15 #4 machining allowance:5 35*15 #8 machining allowance:5 12*6 #1 machining allowance:5 12*8 #2 machining allowance:5 Process method:cutting Tools:electric saw Auxiliary materials:pencil,ruler,file(锉刀)； According to the required size,divide the sheet into several parts and label the cutting path on the plate using the pencil.(allowing sufficient allowance 5mm on each side )Cut the plate along the cutting path.Mill the rough edges with the file,make the edges smooth,remove the allowance and make them into the required size

180*15 #4 machining allowance:5 35*15 #8 machining allowance:5 12*6 #1 machining allowance:5 12*8 #2 machining allowance:5 Process method: cutting Tools: electric saw Auxiliary materials: pencil, ruler, file(锉刀)； According to the required size, divide the sheet into several parts and label the cutting path on the plate using the pencil.(allowing sufficient allowance 5mm on each side ) . Cut the plate along the cutting path. Mill the rough edges with the file, make the edges smooth, remove the allowance and make them into the required size

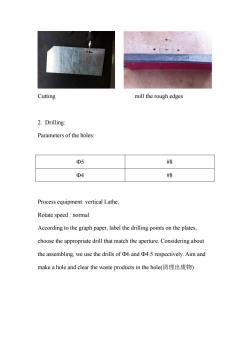

Cutting mill the rough edges 2.Drilling: Parameters of the holes: Φ5 #8 Φ4 #8 Process equipment:vertical Lathe; Rotate speed:normal. According to the graph paper,label the drilling points on the plates, choose the appropriate drill that match the aperture.Considering about the assembling,we use the drills of 6 and 4.5 respectively.Aim and make a hole and clear the waste products in the hole(请理出废物)

Cutting mill the rough edges 2. Drilling: Parameters of the holes: Ф5 #8 Ф4 #8 Process equipment: vertical Lathe; Rotate speed : normal. According to the graph paper, label the drilling points on the plates, choose the appropriate drill that match the aperture. Considering about the assembling, we use the drills of Ф6 and Ф4.5 respectively. Aim and make a hole and clear the waste products in the hole(清理出废物)

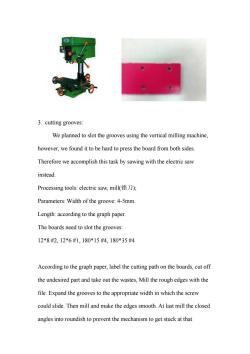

3.cutting grooves: We planned to slot the grooves using the vertical milling machine, however,we found it to be hard to press the board from both sides. Therefore we accomplish this task by sawing with the electric saw instead. Processing tools:electric saw,mill(锉刀)； Parameters:Width of the groove:4-5mm. Length:according to the graph paper. The boards need to slot the grooves: 12*8#2,12*6#1,180*15#4,180*35#4 According to the graph paper,label the cutting path on the boards,cut off the undesired part and take out the wastes,Mill the rough edges with the file.Expand the grooves to the appropriate width in which the screw could slide.Then mill and make the edges smooth.At last mill the closed angles into roundish to prevent the mechanism to get stuck at that

3. cutting grooves: We planned to slot the grooves using the vertical milling machine, however, we found it to be hard to press the board from both sides. Therefore we accomplish this task by sawing with the electric saw instead. Processing tools: electric saw, mill(锉刀); Parameters: Width of the groove: 4-5mm. Length: according to the graph paper. The boards need to slot the grooves: 12*8 #2, 12*6 #1, 180*15 #4, 180*35 #4 According to the graph paper, label the cutting path on the boards, cut off the undesired part and take out the wastes, Mill the rough edges with the file. Expand the grooves to the appropriate width in which the screw could slide. Then mill and make the edges smooth. At last mill the closed angles into roundish to prevent the mechanism to get stuck at that

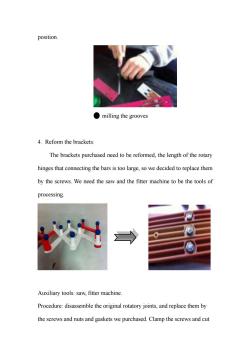

position. ●milling the grooves 4.Reform the brackets: The brackets purchased need to be reformed,the length of the rotary hinges that connecting the bars is too large,so we decided to replace them by the screws.We need the saw and the fitter machine to be the tools of processing Auxiliary tools:saw,fitter machine. Procedure:disassemble the original rotatory joints,and replace them by the screws and nuts and gaskets we purchased.Clamp the screws and cut

position. milling the grooves 4. Reform the brackets: The brackets purchased need to be reformed, the length of the rotary hinges that connecting the bars is too large, so we decided to replace them by the screws. We need the saw and the fitter machine to be the tools of processing. Auxiliary tools: saw, fitter machine. Procedure: disassemble the original rotatory joints, and replace them by the screws and nuts and gaskets we purchased. Clamp the screws and cut

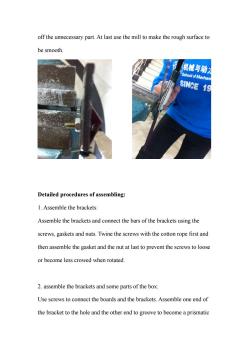

off the unnecessary part.At last use the mill to make the rough surface to be smooth. 机城与动方 School of Mechan SINCE 19 Detailed procedures of assembling: 1.Assemble the brackets: Assemble the brackets and connect the bars of the brackets using the screws,gaskets and nuts.Twine the screws with the cotton rope first and then assemble the gasket and the nut at last to prevent the screws to loose or become less crowed when rotated. 2.assemble the brackets and some parts of the box: Use screws to connect the boards and the brackets.Assemble one end of the bracket to the hole and the other end to groove to become a prismatic

off the unnecessary part. At last use the mill to make the rough surface to be smooth. Detailed procedures of assembling: 1. Assemble the brackets: Assemble the brackets and connect the bars of the brackets using the screws, gaskets and nuts. Twine the screws with the cotton rope first and then assemble the gasket and the nut at last to prevent the screws to loose or become less crowed when rotated. 2. assemble the brackets and some parts of the box: Use screws to connect the boards and the brackets. Assemble one end of the bracket to the hole and the other end to groove to become a prismatic
