《数字信号处理》教学参考资料（Numerical Recipes in C，The Art of Scientific Computing Second Edition）Chapter 10.3 Minimization or Maximization of Functions 10.3 One-Dimensional Search with First Derivatives

10.3 One-Dimensional Search with First Derivatives 405 etemp=e; e=d; if (fabs(p)>=fabs(0.5*q*etemp)Il p =q*(b-x)) d=CGOLD*(e=(x >xm a-x b-x)); The above conditions determine the acceptability of the parabolic fit.Here we take the golden section step into the larger of the two segments. else d=p/q; Take the parabolic step. u=x+d; if (u-a tol2 II b-u tol2) d=SIGN(tol1,xm-x); 2 else d=CGOLD(e=(x >xm a-x b-x)); 83g u=(fabs(d)>=tol1 x+d x+SIGN(tol1,d)); granted for 19881992 fu=(*f)(u); This is the one function evaluation per iteration 1.800 if (fu x)a=x;else b=x; tion evaluation. SHFT(v,w,x,u) Housekeeping follows: from NUMERICAL RECIPESI SHFT(fv,fw,fx,fu) else if (u x)a=u;else b=u; if (fu <fw l v==x){ v=W; w=u; (North America 州bMe se to make one paper University Press. THE fvefw; ART fw=fu; else if (fu <fv l v =x Il v==){ v=u; fv=fu; ictly proh Programs 2 2 OF SCIENTIFIC Done with housekeeping.Back for another iteration. nrerror("Too many iterations in brent"); 来xmin=x: Never get here. return fx; 1920 COMPUTING(ISBN Numerical Recipes 10-621 CITED REFERENCES AND FURTHER READING: Brent.R.P.1973.Algorithms for Minimization without Derivatives(Englewood Cliffs.NJ:Prentice- 43108 Hall),Chapter 5.[1] Forsythe,G.E.,Malcolm,M.A.,and Moler,C.B.1977,Computer Methods for Mathematical Computations (Englewood Cliffs,NJ:Prentice-Hall),$8.2. (outside North Software. 10.3 One-Dimensional Search with First visit website machine Derivatives Here we want to accomplish precisely the same goal as in the previous section,namely to isolate a functional minimum that is bracketed by the triplet of abscissas (a,6,c),but utilizing an additional capability to compute the function's first derivative as well as its value

10.3 One-Dimensional Search with First Derivatives 405 Permission is granted for internet users to make one paper copy for their own personal use. Further reproduction, or any copyin Copyright (C) 1988-1992 by Cambridge University Press. Programs Copyright (C) 1988-1992 by Numerical Recipes Software. Sample page from NUMERICAL RECIPES IN C: THE ART OF SCIENTIFIC COMPUTING (ISBN 0-521-43108-5) g of machine￾readable files (including this one) to any server computer, is strictly prohibited. To order Numerical Recipes books or CDROMs, visit website http://www.nr.com or call 1-800-872-7423 (North America only), or send email to directcustserv@cambridge.org (outside North America). etemp=e; e=d; if (fabs(p) >= fabs(0.5*q*etemp) || p = q*(b-x)) d=CGOLD*(e=(x >= xm ? a-x : b-x)); The above conditions determine the acceptability of the parabolic fit. Here we take the golden section step into the larger of the two segments. else { d=p/q; Take the parabolic step. u=x+d; if (u-a = xm ? a-x : b-x)); } u=(fabs(d) >= tol1 ? x+d : x+SIGN(tol1,d)); fu=(*f)(u); This is the one function evaluation per iteration. if (fu = x) a=x; else b=x; tion evaluation. SHFT(v,w,x,u) Housekeeping follows: SHFT(fv,fw,fx,fu) } else { if (u < x) a=u; else b=u; if (fu <= fw || w == x) { v=w; w=u; fv=fw; fw=fu; } else if (fu <= fv || v == x || v == w) { v=u; fv=fu; } } Done with housekeeping. Back for } another iteration. nrerror("Too many iterations in brent"); *xmin=x; Never get here. return fx; } CITED REFERENCES AND FURTHER READING: Brent, R.P. 1973, Algorithms for Minimization without Derivatives (Englewood Cliffs, NJ: Prentice￾Hall), Chapter 5. [1] Forsythe, G.E., Malcolm, M.A., and Moler, C.B. 1977, Computer Methods for Mathematical Computations (Englewood Cliffs, NJ: Prentice-Hall), §8.2. 10.3 One-Dimensional Search with First Derivatives Here we want to accomplish precisely the same goal as in the previous section, namely to isolate a functional minimum that is bracketed by the triplet of abscissas (a, b, c), but utilizing an additional capability to compute the function’s first derivative as well as its value

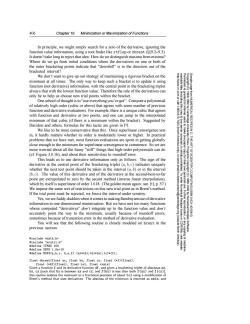

406 Chapter 10.Minimization or Maximization of Functions In principle,we might simply search for a zero of the derivative,ignoring the function value information,using a root finder like rtflsp or zbrent(889.2-9.3). It doesn't take long to reject that idea:How do we distinguish maxima from minima? Where do we go from initial conditions where the derivatives on one or both of the outer bracketing points indicate that "downhill"is in the direction out of the bracketed interval? We don't want to give up our strategy of maintaining a rigorous bracket on the minimum at all times.The only way to keep such a bracket is to update it using function(not derivative)information,with the central point in the bracketing triplet always that with the lowest function value.Therefore the role of the derivatives can 81 only be to help us choose new trial points within the bracket. One school of thought is to"use everything you've got":Compute a polynomial of relatively high order (cubic or above)that agrees with some number of previous function and derivative evaluations.For example,there is a unique cubic that agrees with function and derivative at two points,and one can jump to the interpolated minimum of that cubic (if there is a minimum within the bracket).Suggested by Davidon and others,formulas for this tactic are given in [1]. We like to be more conservative than this.Once superlinear convergence sets d hB 令 in,it hardly matters whether its order is moderately lower or higher.In practical problems that we have met,most function evaluations are spent in getting globally close enough to the minimum for superlinear convergence to commence.So we are Press. more worried about all the funny"stiff things that high-order polynomials can do (cf.Figure 3.0.1b),and about their sensitivities to roundoff error. This leads us to use derivative information only as follows:The sign of the derivative at the central point of the bracketing triplet (a.b.c)indicates uniquely OF SCIENTIFIC whether the next test point should be taken in the interval(a,b)or in the interval (b,c).The value of this derivative and of the derivative at the second-best-so-far point are extrapolated to zero by the secant method(inverse linear interpolation), which by itself is superlinear of order 1.618.(The golden mean again:see [1],p.57.) We impose the same sort of restrictions on this new trial point as in Brent's method. If the trial point must be rejected,we bisect the interval under scrutiny. Yes.we are fuddy-duddies when it comes to making flamboyant use of derivative information in one-dimensional minimization.But we have met too many functions Numerica 10621 whose computed "derivatives"don't integrate up to the function value and don't 43106 accurately point the way to the minimum,usually because of roundoff errors, sometimes because of truncation error in the method of derivative evaluation. (outside Recipes You will see that the following routine is closely modeled on brent in the previous section. Software. #include #include "nrutil.h" #define ITMAX 100 #define ZEPS 1.0e-10 #define MOV3(a,b,c,d,e,f)(a)=(d);(b)=(e);(c)=(f); float dbrent(float ax,float bx,float cx,float (*f)(float), float (*df)(float),float tol,float *xmin) Given a function f and its derivative function df,and given a bracketing triplet of abscissas ax bx,cx [such that bx is between ax and cx,and f(bx)is less than both f(ax)and f(cx)], this routine isolates the minimum to a fractional precision of about tol using a modification of Brent's method that uses derivatives.The abscissa of the minimum is returned as xmin,and

406 Chapter 10. Minimization or Maximization of Functions Permission is granted for internet users to make one paper copy for their own personal use. Further reproduction, or any copyin Copyright (C) 1988-1992 by Cambridge University Press. Programs Copyright (C) 1988-1992 by Numerical Recipes Software. Sample page from NUMERICAL RECIPES IN C: THE ART OF SCIENTIFIC COMPUTING (ISBN 0-521-43108-5) g of machine￾readable files (including this one) to any server computer, is strictly prohibited. To order Numerical Recipes books or CDROMs, visit website http://www.nr.com or call 1-800-872-7423 (North America only), or send email to directcustserv@cambridge.org (outside North America). In principle, we might simply search for a zero of the derivative, ignoring the function value information, using a root finder like rtflsp or zbrent (§§9.2–9.3). It doesn’t take long to reject that idea: How do we distinguish maxima from minima? Where do we go from initial conditions where the derivatives on one or both of the outer bracketing points indicate that “downhill” is in the direction out of the bracketed interval? We don’t want to give up our strategy of maintaining a rigorous bracket on the minimum at all times. The only way to keep such a bracket is to update it using function (not derivative) information, with the central point in the bracketing triplet always that with the lowest function value. Therefore the role of the derivatives can only be to help us choose new trial points within the bracket. One school of thought is to “use everything you’ve got”: Compute a polynomial of relatively high order (cubic or above) that agrees with some number of previous function and derivative evaluations. For example, there is a unique cubic that agrees with function and derivative at two points, and one can jump to the interpolated minimum of that cubic (if there is a minimum within the bracket). Suggested by Davidon and others, formulas for this tactic are given in [1]. We like to be more conservative than this. Once superlinear convergence sets in, it hardly matters whether its order is moderately lower or higher. In practical problems that we have met, most function evaluations are spent in getting globally close enough to the minimum for superlinear convergence to commence. So we are more worried about all the funny “stiff” things that high-order polynomials can do (cf. Figure 3.0.1b), and about their sensitivities to roundoff error. This leads us to use derivative information only as follows: The sign of the derivative at the central point of the bracketing triplet (a, b, c) indicates uniquely whether the next test point should be taken in the interval (a, b) or in the interval (b, c). The value of this derivative and of the derivative at the second-best-so-far point are extrapolated to zero by the secant method (inverse linear interpolation), which by itself is superlinear of order 1.618. (The golden mean again: see [1], p. 57.) We impose the same sort of restrictions on this new trial point as in Brent’s method. If the trial point must be rejected, we bisect the interval under scrutiny. Yes, we are fuddy-duddieswhen it comes to making flamboyant use of derivative information in one-dimensional minimization. But we have met too many functions whose computed “derivatives” don’t integrate up to the function value and don’t accurately point the way to the minimum, usually because of roundoff errors, sometimes because of truncation error in the method of derivative evaluation. You will see that the following routine is closely modeled on brent in the previous section. #include #include "nrutil.h" #define ITMAX 100 #define ZEPS 1.0e-10 #define MOV3(a,b,c, d,e,f) (a)=(d);(b)=(e);(c)=(f); float dbrent(float ax, float bx, float cx, float (*f)(float), float (*df)(float), float tol, float *xmin) Given a function f and its derivative function df, and given a bracketing triplet of abscissas ax, bx, cx [such that bx is between ax and cx, and f(bx) is less than both f(ax) and f(cx)], this routine isolates the minimum to a fractional precision of about tol using a modification of Brent’s method that uses derivatives. The abscissa of the minimum is returned as xmin, and

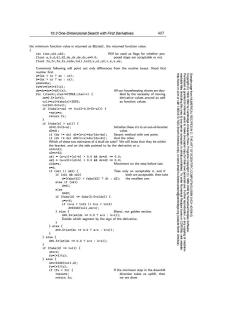

10.3 One-Dimensional Search with First Derivatives 407 the minimum function value is returned as dbrent,the returned function value int iter,ok1,ok2; Will be used as flags for whether pro- float a,b,d,d1,d2,du,dv,dw,dx,e=0.0; posed steps are acceptable or not. float fu,fv,fw,fx,olde,tol1,tol2,u,ul,u2,v,w,x,xm; Comments following will point out only differences from the routine brent.Read that routine first. a=(axcx？ax:cx); x=w=v=bx; fw-=fv=fx=(*f)(x): dw=dv=dx=(*df)(x); All our housekeeping chores are dou- for (iter=1;itertol1){ from NUMERICAL RECIPES IN d1=2.0*(b-a): Initialize these d's to an out-of-bracket d2=d1; value. (North to make if (dw !dx)d1=(w-x)*dx/(dx-dw); Secant method with one point. if (dv !dx)d2=(v-x)*dx/(dx-dv); And the other. Which of these two estimates of d shall we take?We will insist that they be within Ameri computer, one paper /Cambridge University Press. THE the bracket,and on the side pointed to by the derivative at x: ART u1=x+d1; u2=x+d2; 是 ok1=(a-u1)*(u1-b)>0.0&dx*d10.0dx*d2=0.0？a-x:b-x)); -431085 Decide which segment by the sign of the derivative. else d=0.5*(e=(dx>=0.0？a-x:b-x)); (outside North America) Software. else d=0.5*(e=(dx>=0.0？a-x:b-x)); if (fabs(d)>=toll){ machine u=x+d; fu=(*f)(u) else u=x+SIGN(tol1,d); fu=(*f)(u); if (fu>fx){ If the minimum step in the downhill 米Xxm1n=X; direction takes us uphill,then return fx; we are done

10.3 One-Dimensional Search with First Derivatives 407 Permission is granted for internet users to make one paper copy for their own personal use. Further reproduction, or any copyin Copyright (C) 1988-1992 by Cambridge University Press. Programs Copyright (C) 1988-1992 by Numerical Recipes Software. Sample page from NUMERICAL RECIPES IN C: THE ART OF SCIENTIFIC COMPUTING (ISBN 0-521-43108-5) g of machine￾readable files (including this one) to any server computer, is strictly prohibited. To order Numerical Recipes books or CDROMs, visit website http://www.nr.com or call 1-800-872-7423 (North America only), or send email to directcustserv@cambridge.org (outside North America). the minimum function value is returned as dbrent, the returned function value. { int iter,ok1,ok2; Will be used as flags for whether pro￾float a,b,d,d1,d2,du,dv,dw,dx,e=0.0; posed steps are acceptable or not. float fu,fv,fw,fx,olde,tol1,tol2,u,u1,u2,v,w,x,xm; Comments following will point out only differences from the routine brent. Read that routine first. a=(ax cx ? ax : cx); x=w=v=bx; fw=fv=fx=(*f)(x); dw=dv=dx=(*df)(x); All our housekeeping chores are dou￾bled by the necessity of moving derivative values around as well as function values. for (iter=1;iter tol1) { d1=2.0*(b-a); Initialize these d’s to an out-of-bracket d2=d1; value. if (dw != dx) d1=(w-x)*dx/(dx-dw); Secant method with one point. if (dv != dx) d2=(v-x)*dx/(dx-dv); And the other. Which of these two estimates of d shall we take? We will insist that they be within the bracket, and on the side pointed to by the derivative at x: u1=x+d1; u2=x+d2; ok1 = (a-u1)*(u1-b) > 0.0 && dx*d1 0.0 && dx*d2 = 0.0 ? a-x : b-x)); Decide which segment by the sign of the derivative. } } else { d=0.5*(e=(dx >= 0.0 ? a-x : b-x)); } } else { d=0.5*(e=(dx >= 0.0 ? a-x : b-x)); } if (fabs(d) >= tol1) { u=x+d; fu=(*f)(u); } else { u=x+SIGN(tol1,d); fu=(*f)(u); if (fu > fx) { If the minimum step in the downhill direction takes us uphill, then we are done. *xmin=x; return fx;

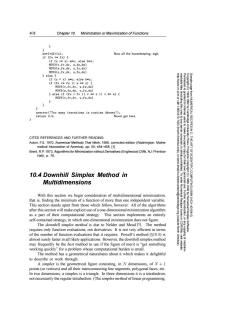

408 Chapter 10. Minimization or Maximization of Functions du=(*df)(u); Now all the housekeeping,sigh. if (fu x)a=x;else b=x; MOV3(v,fv,dv,w,fw,dw) MOV3(w,fw,dw,x,fx,dx) MOV3(x,fx,dx,u,fu,du) else if (u x)asu;else bsu; if (fu <fw l w =x){ MOV3(v,fv,dv,w,fw,dw) MOV3(w,fw,dw,u,fu,du) else if (fu fv Il v =x l v==w){ MOV3(v,fv,dv,u,fu,du) 83 granted for (including this one) 19881992 nrerror("Too many iterations in routine dbrent"); return 0.0; Never get here. 111800.872 NUMERICAL RECIPES (Nort CITED REFERENCES AND FURTHER READING: America server computer, University Press. 令 THE Acton,F.S.1970,Numerica/Methods That Work,1990,corrected edition (Washington:Mathe- to make one paper matical Association of America),pp.55;454-458.[1] ART Brent,R.P.1973,Algorithms for Minimization without Derivatives(Englewood Cliffs,NJ:Prentice- Hall),p.78. Programs OF SCIENTIFIC 10.4 Downhill Simplex Method in to dir Multidimensions st COMPUTING (ISBN 19891892 With this section we begin consideration of multidimensional minimization, that is,finding the minimum of a function of more than one independent variable. 10-621 This section stands apart from those which follow.however:All of the algorithms after this section will make explicit use of a one-dimensional minimization algorithm Fuurggoglrion 43108 as a part of their computational strategy.This section implements an entirely Numerical Recipes self-contained strategy,in which one-dimensional minimization does not figure. The downhill simplex method is due to Nelder and Mead [1].The method (outside requires only function evaluations,not derivatives.It is not very efficient in terms North Software. of the number of function evaluations that it requires.Powell's method (810.5)is almost surely faster in all likely applications.However,the downhill simplex method may frequently be the best method to use if the figure of merit is "get something working quickly"for a problem whose computational burden is small. machine The method has a geometrical naturalness about it which makes it delightful to describe or work through: A simplex is the geometrical figure consisting,in N dimensions,of N+1 points(or vertices)and all their interconnecting line segments,polygonal faces,etc. In two dimensions,a simplex is a triangle.In three dimensions it is a tetrahedron, not necessarily the regular tetrahedron.(The simplex method of linear programming

408 Chapter 10. Minimization or Maximization of Functions Permission is granted for internet users to make one paper copy for their own personal use. Further reproduction, or any copyin Copyright (C) 1988-1992 by Cambridge University Press. Programs Copyright (C) 1988-1992 by Numerical Recipes Software. Sample page from NUMERICAL RECIPES IN C: THE ART OF SCIENTIFIC COMPUTING (ISBN 0-521-43108-5) g of machine￾readable files (including this one) to any server computer, is strictly prohibited. To order Numerical Recipes books or CDROMs, visit website http://www.nr.com or call 1-800-872-7423 (North America only), or send email to directcustserv@cambridge.org (outside North America). } } du=(*df)(u); Now all the housekeeping, sigh. if (fu = x) a=x; else b=x; MOV3(v,fv,dv, w,fw,dw) MOV3(w,fw,dw, x,fx,dx) MOV3(x,fx,dx, u,fu,du) } else { if (u < x) a=u; else b=u; if (fu <= fw || w == x) { MOV3(v,fv,dv, w,fw,dw) MOV3(w,fw,dw, u,fu,du) } else if (fu < fv || v == x || v == w) { MOV3(v,fv,dv, u,fu,du) } } } nrerror("Too many iterations in routine dbrent"); return 0.0; Never get here. } CITED REFERENCES AND FURTHER READING: Acton, F.S. 1970, Numerical Methods That Work; 1990, corrected edition (Washington: Mathe￾matical Association of America), pp. 55; 454–458. [1] Brent, R.P. 1973, Algorithms for Minimization without Derivatives (Englewood Cliffs, NJ: Prentice￾Hall), p. 78. 10.4 Downhill Simplex Method in Multidimensions With this section we begin consideration of multidimensional minimization, that is, finding the minimum of a function of more than one independent variable. This section stands apart from those which follow, however: All of the algorithms after this section will make explicit use of a one-dimensional minimization algorithm as a part of their computational strategy. This section implements an entirely self-contained strategy, in which one-dimensional minimization does not figure. The downhill simplex method is due to Nelder and Mead [1]. The method requires only function evaluations, not derivatives. It is not very efficient in terms of the number of function evaluations that it requires. Powell’s method (§10.5) is almost surely faster in all likely applications. However, the downhill simplex method may frequently be the best method to use if the figure of merit is “get something working quickly” for a problem whose computational burden is small. The method has a geometrical naturalness about it which makes it delightful to describe or work through: A simplex is the geometrical figure consisting, in N dimensions, of N + 1 points (or vertices) and all their interconnecting line segments, polygonal faces, etc. In two dimensions, a simplex is a triangle. In three dimensions it is a tetrahedron, not necessarily the regular tetrahedron. (The simplex method of linear programming
